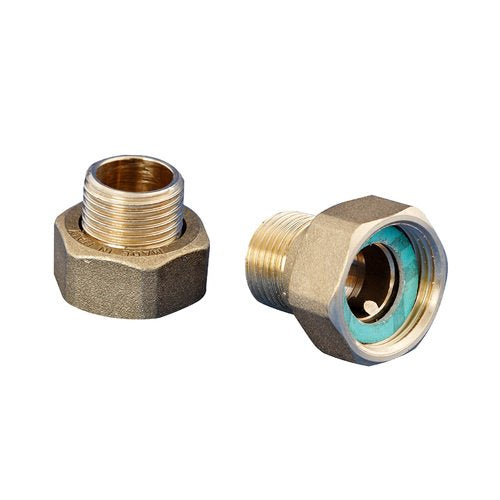

WILO screw connection, brass R1/d 28 i x G 11/2 i (1 set)

Fittings for drinking water and solar thermal pumps with threaded connection

Brass fittings, special inserts with Whitworth external thread (DIN EN 10226-1) and internal bore for optional connection with thread or solder connection to copper pipe (DIN EN 1057).

Scope of delivery

• 1 set of brass fittings consisting of:
• 2 union nuts
• 2 inserts (screw/solder connection)
• 2 flat gaskets

Technical data

• Inlet connection: G 1½
• Outlet connection: R 1
• Max. medium temperature: 110 °C
• Material: Brass, CW617N
• Quantity per order unit: 1 set
• Net weight approx.: 0.56 kg
• Manufacturer: Wilo
• Item no.: 112047195
