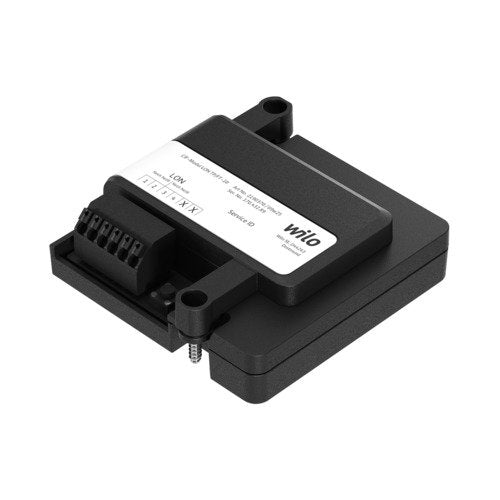

WILO Pump Control/Interface Module CIF Module BACnet MS/TP

Interface module as a retrofittable plug-in module for extending the pump's communication interfaces according to various standards and protocol variants as per the type key.

General functions

Serial, digital interface for connection to building automation (BA) for the transfer of data points as:

• Control commands to the pump
• Messages from the pump
• Process values

Equipment

RS485 interface with BACnet MS/TP protocol

Information for download

http://www.wilo.de/automation (German)

http://www.wilo.com/automation (English)

Scope of delivery

• CIF module
• 2x cable glands M16x1.5 (only suitable for Stratos MAXO)
• Installation and operating instructions

Bus cables (shielded!) must be provided on site

Technical data

• Cable type: Bus cable, twisted pair, shielded 1 x 2 x 0.5 mm² / 120 Ω wave impedance (cable type B according to TIA 485-A)
• Cable length: 1000 m
• Stub line: not permitted
• Terminal cross-section: 1.5 mm²
• Interface: RS485 (TIA-485A), optically isolated
• Speed: 9600, 19200, 38400, 76800 kBit/s
• Format: Fixed
• Protocol: BACnet MS/TP Version 1 Revision 4
• Profile: BACnet Smart Sensor, Smart Actuator (B SS, B SA)
• Net weight approx.: 0.055 kg
• Make: Wilo
• Part no.: 2190367
