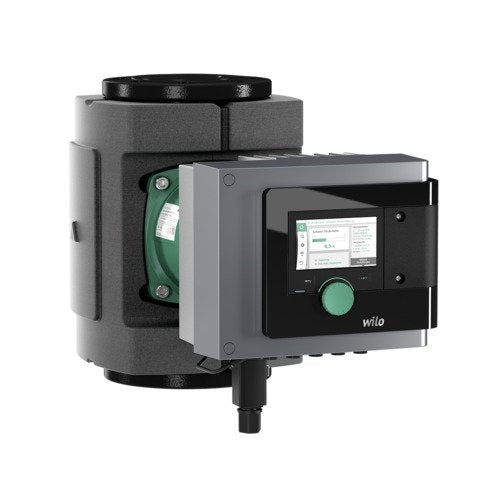

Premium Smart Pump Wilo-Stratos MAXO

High-efficiency in-line wet-rotor pump with EC motor and electronic power adjustment. Can be used for heating water, cold water, and water-glycol mixtures. Energy Efficiency Index (EEI) between ≤0.17 and ≤0.19 depending on the pump type.

Control Modes:

• Permanent, automatic power adjustment to system requirements without setpoint input Wilo-Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control.
• Constant temperature (T-const.)
• Constant differential temperature (dT-const.)
• Demand-driven volume flow optimization of the booster pump through networking and communication with multiple pumps (Multi-Flow Adaptation).
• Constant volume flow (Q-const.)
• Differential pressure control dp-c at a remote point in the pipe network (critical point control)
• Constant differential pressure (dp-c)
• Variable differential pressure (dp-v) with the option of nominal operating point input
• Constant speed (n-const.)
• User-defined PID control

Functions:

• Heat quantity detection
• Cooling quantity detection
• Automatic pump shutdown on zero flow detection (No-Flow Stop)
• Switching between heating and cooling mode (automatic, external or manual)
• Adjustable volume flow limitation via Q-Limit function (Qmin. and Qmax.)
• Twin pump operating modes: Efficiency-optimized addition mode for dp-c and dp-v, main/standby operation
• Saving and restoring configured pump settings (3 recovery points)
• Fault/warning message display in plain text including troubleshooting recommendations
• Venting function for automatic venting of the rotor chamber
• Automatic night setback
• Automatic deblocking function and integrated full motor protection
• Dry-running detection

Display:

• Control mode
• Set point
• Volume flow
• Temperature
• Power consumption
• Electrical consumption
• Active influences (e.g., STOP, No-Flow Stop)

Design:

• 2 configurable analog inputs: 0-10V, 2-10V, 0-20mA, 4-20mA and standard Pt1000, power supply with +24VDC
• 2 configurable digital inputs (Ext. OFF, Ext. Min, Ext. Max, Heating/Cooling, Manual override (Building Automation disconnected), Operation lock (keypad lock and remote control configuration protection))
• 2 configurable signal relays for operating and fault messages
• Slot for Wilo-CIF modules with interfaces for building automation BA (Optional accessories: CIF modules Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet IP, LON, PLR, CANopen)
• Wilo Net as Wilo system bus for communication between Wilo products, e.g., Multi-Flow Adaptation, twin pump operation and Wilo-Smart Gateway
• Integrated temperature sensor
• Automatic emergency operation in special conditions (pump speed definable) e.g., in case of bus communication failure or sensor value loss
• Graphical color display (4.3 inches) with one-button manual control
• Reading and setting operating data as well as creating a commissioning report via Bluetooth interface (without additional accessories) using the Wilo Assistant App
• Twin pump management integrated (twin pumps are pre-wired), when using 2 individual pumps as a twin pump unit, connection via WILO Net
• Cable break detection for analog signals (in conjunction with 2-10V or 4-20mA)
• Outdoor installation with weather protection possible according to installation and operating instructions
• Date and time preset
• Thermal insulation shell for heating applications
• 5-year warranty

Scope of delivery

• Pump
• Optimized Wilo-Connector for all sizes
• 2x cable gland M16 x 1.5
• Washers for flange bolts M12 and M16 (for connection nominal diameters DN32 to DN65)
• 2x gaskets for threaded connection
• Thermal insulation shell
• Installation and operating instructions (digital)

Optional accessories:

• ClimaForm cold insulation to prevent condensation
• CIF module: Modbus TCP, Modbus RTU, BACnet IP, BACnet MS/TP, LON, PLR, CANopen
• Pt1000 (B) pipe clamp sensor (for domestic hot water)
• Pt1000 (AA) sensor for installation in immersion sleeve
• Differential pressure sensor

Operating data

• Fluid: Water, ethylene glycol, propylene glycol
• Min. media temperature: -10 °C
• Max. media temperature: 110 °C
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 40 °C
• Maximum operating pressure: 10 bar
• Minimum inlet head at 50°C: 5 m
• Minimum inlet head at 95°C: 9 m
• Minimum inlet head at 110°C: 23 m

Motor data

• Energy Efficiency Index (EEI): 0.17
• Mains connection: 1~230 V ±10%, 50/60 Hz
• Current (min): 0.2 A
• Current (max): 2.47 A
• Motor nominal power: 470 W
• Speed min.: 650 rpm
• Speed max.: 3200 rpm
• Power consumption: 10 W
• Power consumption: 560 W
• Interference emission: EN 61800-3,2004+A1,2012 / Residential area (C1)
• Immunity to interference: EN 61800-3,2004+A1,2012 / Industrial area (C2)
• Insulation class: F
• Protection class: IPX4D
• Cable gland: 5 x M16x1.5

Materials

• Pump housing: Cast iron
• Impeller: PPS-GF40
• Shaft: 1.4028, DLC-coated
• Bearings: Carbon, antimony-impregnated

Installation dimensions

• Pump connection: DN 65
• Installation length: 280 mm

Ordering information

• Make: Wilo
• Product name: Stratos MAXO 65/0,5-9 PN 6/10
• Net weight approx.: 20.4 kg
• Article number: 2186209
