WILO Wet Rotor Premium Smart Pumps Stratos MAXO 40/0.5-4 PN6/10, DN40, 115W

Wilo-Stratos MAXO Premium Smart Pump

High-efficiency inline glandless pump with EC motor and electronic power adjustment. Can be used for heating water, cold water, and water-glycol mixtures. Energy efficiency index (EEI) between &le,0.17 and &le,0.19 depending on the pump type.

Control modes:

• Permanent, automatic power adjustment to system requirements without setpoint specification Wilo-Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control mode.
• Constant temperature (T-const.)
• Constant differential temperature (dT-const.)
• Demand-driven flow optimisation of the booster pump through networking and communication with multiple pumps (Multi-Flow Adaptation).
• Constant flow rate (Q-const.)
• Differential pressure control dp-c at a remote point in the pipe network (critical point control)
• Constant differential pressure (dp-c)
• Variable differential pressure (dp-v) with the option of nominal operating point input
• Constant speed (n-const.)
• User-defined PID control

Functions:

• Heat quantity measurement
• Cooling quantity measurement
• Automatic pump shutdown on zero flow detection (No-Flow Stop)
• Switching between heating and cooling mode (automatic, external or manual)
• Adjustable flow rate limitation through Q-Limit function (Qmin. and Qmax.)
• Twin pump operating modes: Efficiency-optimised addition mode for dp-c and dp-v, duty/standby mode
• Saving and restoring configured pump settings (3 restoration points)
• Fault/warning message display in plain text including troubleshooting recommendations
• Ventilation function for automatic venting of the rotor chamber
• Automatic night setback
• Automatic deblocking function and integrated full motor protection
• Dry-running detection

Display:

• Control mode
• Setpoint
• Flow rate
• Temperature
• Power consumption
• Electrical consumption
• Active influences (e.g. STOP, No-Flow Stop)

Design:

• 2 configurable analog inputs: 0-10V, 2-10V, 0-20mA, 4-20mA and standard Pt1000, power supply with +24VDC
• 2 configurable digital inputs (Ext. OFF, Ext. Min, Ext. Max, Heating/Cooling, Manual Override (Building Automation decoupled), Operating Lock (Keypad Lock and Remote Control Configuration Protection))
• 2 configurable signal relays for operating and fault messages
• Slot for Wilo-CIF modules with interfaces for building automation (GA) (Optional accessories: CIF modules Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet IP, LON, PLR, CANopen)
• Wilo Net as Wilo system bus for communication between Wilo products, e.g. Multi-Flow Adaptation, twin pump operation and Wilo-Smart Gateway
• Integrated temperature sensor
• Automatic emergency operation in special conditions (pump speed definable) e.g. in case of bus communication failure or sensor value loss
• Graphical colour display (4.3 inches) with one-button manual control
• Reading and setting operating data as well as e.g. creating a commissioning report via Bluetooth interface (without additional accessories) using the Wilo Assistant App
• Twin pump management integrated (twin pumps are pre-wired), when using 2 single pumps as a twin pump unit, connection via WILO Net
• Cable break detection for analog signal (in conjunction with 2-10V or 4-20mA)
• Outdoor installation with weather protection possible according to installation and operating instructions
• Date and time pre-set
• Thermal insulation shell for heating applications
• 5-year warranty

Scope of delivery

• Pump
• Optimised Wilo-Connector for all sizes the same
• 2x cable glands M16 x 1.5
• Washers for flange bolts M12 and M16 (for nominal connection sizes DN32 to DN65)
• 2x gaskets for threaded connection
• Thermal insulation shell
• Installation and operating instructions (digital)

Optional accessories:

• ClimaForm cold insulation to prevent condensation
• CIF module: Modbus TCP, Modbus RTU, BACnet IP, BACnet MS/TP, LON, PLR, CANopen
• Pt1000 (B) pipe clamp sensor (for domestic hot water)
• Pt1000 (AA) sensor for installation in immersion sleeve
• Differential pressure sensor

Operating data

• Fluid: Water, ethylene glycol, propylene glycol
• Min. fluid temperature: -10 &deg,C
• Max. fluid temperature: 110 &deg,C
• Min. ambient temperature: -10 &deg,C
• Max. ambient temperature: 40 &deg,C
• Maximum operating pressure: 10 bar
• Minimum inlet head at 50&deg,C: 3 m
• Minimum inlet head at 95&deg,C: 10 m
• Minimum inlet head at 110&deg,C: 16 m

Motor data

• Energy efficiency index (EEI): 0.19
• Mains connection: 1~230 V &plusmn,10%, 50/60 Hz
• Current (min): 0.11 A
• Current (max): 0.93 A
• Motor nominal power: 99 W
• Speed min.: 750 rpm
• Speed max.: 2600 rpm
• Power consumption: 7 W
• Power consumption: 130 W
• Emissions: EN 61800-3,2004+A1,2012 / Residential (C1)
• Immunity: EN 61800-3,2004+A1,2012 / Industrial (C2)
• Insulation class: F
• Protection class: IPX4D
• Cable gland: 5 x M16x1.5
• Sound pressure level: 27 dB

Materials

• Pump housing: Cast iron
• Impeller: PPS-GF40
• Shaft: Stainless steel
• Bearings: Carbon graphite

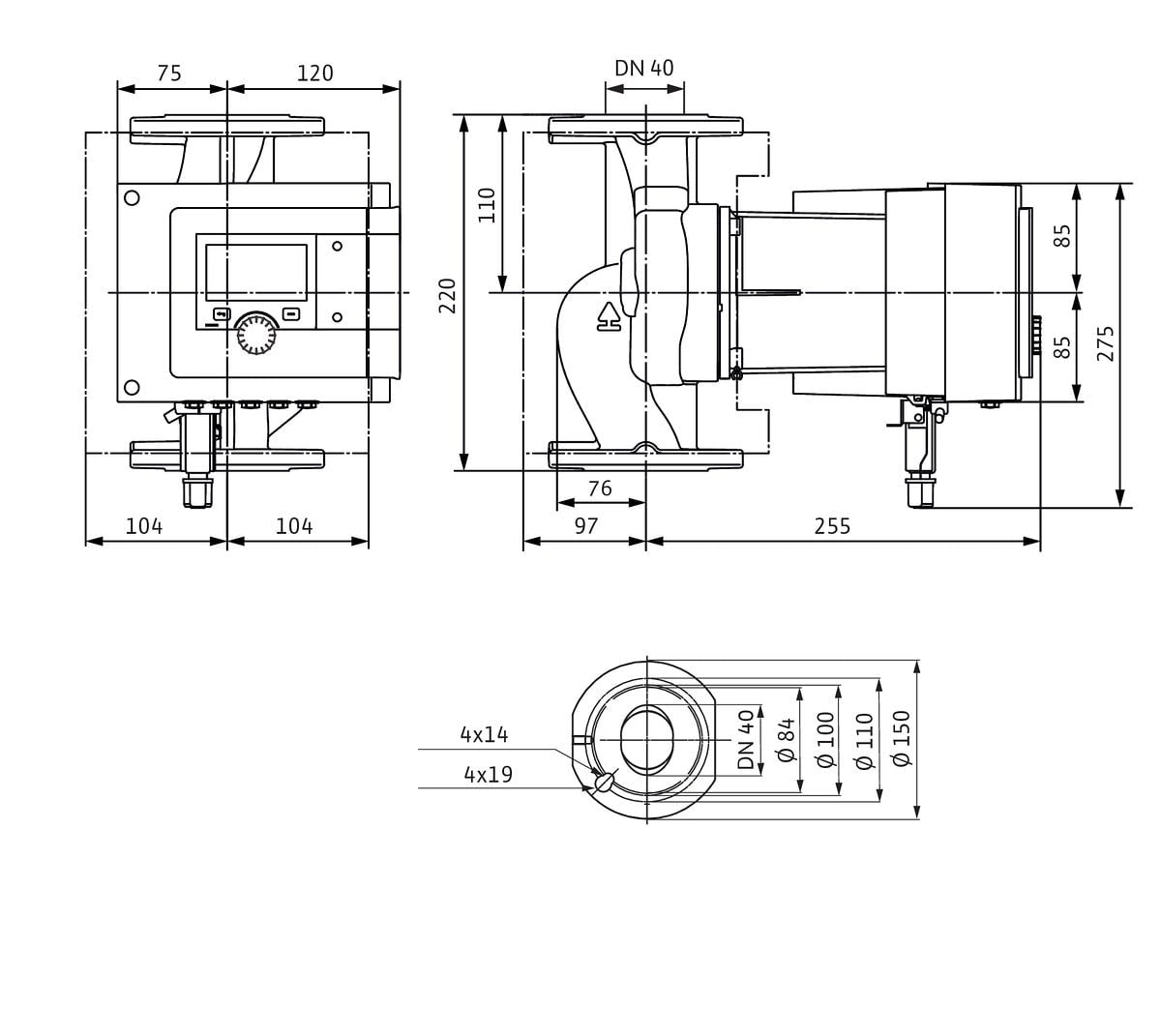

Installation dimensions

• Pump connection: DN 40
• Overall length: 220 mm

Ordering information

• Make: Wilo
• Product name: Stratos MAXO 40/0.5-4 PN 6/10
• Net weight approx.: 11.4 kg
• Item number: 2186198
