WILO Wet Rotor Premium Smart Pumps Stratos MAXO 30/0.5-6 PN10, G2, 109W

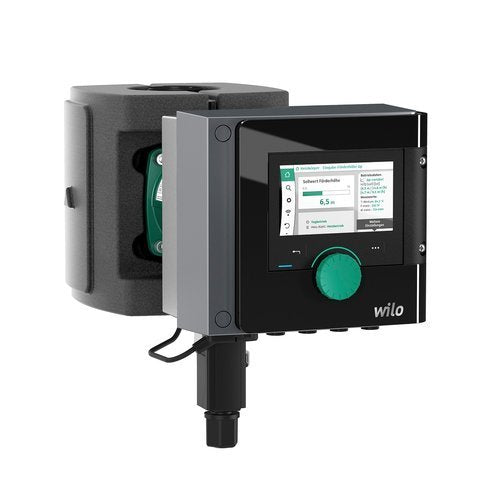

Premium Smart Pump Wilo-Stratos MAXO

High-efficiency inline wet rotor pump with EC motor and electronic power adjustment. Can be used for heating water, cold water, and water-glycol mixtures. Energy efficiency index (EEI) between &le,0.17 and &le,0.19 depending on the pump type.

Control Modes:

• Permanent, automatic power adjustment to the system requirements without setpoint specification Wilo-Dynamic Adapt plus (factory setting). Up to 20% energy saving compared to dp-v control mode.
• Constant temperature (T-const.)
• Constant differential temperature (dT-const.)
• Demand-oriented volume flow optimization of the feeder pump through networking and communication with multiple pumps (Multi-Flow Adaptation).
• Constant volume flow (Q-const.)
• Differential pressure control dp-c at a remote point in the piping network (critical point control)
• Constant differential pressure (dp-c)
• Variable differential pressure (dp-v) with the option of nominal operating point input
• Constant speed (n-const.)
• User-defined PID control

Functions:

• Heat metering
• Cooling metering
• Automatic pump shutdown upon zero-flow detection (No-Flow Stop)
• Switching between heating and cooling mode (automatic, external or manual)
• Adjustable volume flow limitation via Q-Limit function (Qmin. and Qmax.)
• Dual pump operating modes: Efficiency-optimized addition mode for dp-c and dp-v, main/standby mode
• Save and restore configured pump settings (3 restore points)
• Fault/warning message display in plain text including recommended remedies
• Venting function for automatic deaeration of the rotor chamber
• Automatic night setback
• Automatic deblocking function and integrated full motor protection
• Dry-running detection

Display:

• Control mode
• Setpoint
• Volume flow
• Temperature
• Power consumption
• Electrical consumption
• Active influences (e.g., STOP, No-Flow Stop)

Design:

• 2 configurable analog inputs: 0-10V, 2-10V, 0-20mA, 4-20mA and commercial Pt1000, power supply with +24VDC
• 2 configurable digital inputs (Ext. OFF, Ext. Min, Ext. Max, Heating/Cooling, Manual Override (Building Automation decoupled), Operating Lock (Keypad lock and remote control configuration protection))
• 2 configurable signal relays for operating and fault messages
• Slot for Wilo-CIF modules with interfaces for building automation BA (Optional accessories: CIF modules Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet IP, LON, PLR, CANopen)
• Wilo Net as Wilo system bus for communication between Wilo products, e.g., Multi-Flow Adaptation, dual pump operation and Wilo-Smart Gateway
• Integrated temperature sensor
• Automatic emergency operation in special conditions (pump speed definable) e.g. in case of bus communication failure or sensor value loss
• Graphical color display (4.3 inches) with operation via single-button manual control level
• Read out and set operating data as well as, for example, create a commissioning report via Bluetooth interface (without additional accessories) using the Wilo Assistant App
• Dual pump management integrated (dual pumps are pre-wired), when using 2 single pumps as a dual pump unit, connection via WILO Net
• Cable break detection for analog signal (in conjunction with 2-10V or 4-20mA)
• Outdoor installation with weather protection possible according to installation and operating instructions
• Date and time preset
• Thermal insulation shell for heating applications
• 5-year warranty

Scope of delivery

• Pump
• Optimized Wilo-Connector for all sizes the same
• 2x cable glands M16 x 1.5
• Washers for flange screws M12 and M16 (for connection nominal diameters DN32 to DN65)
• 2x gaskets for threaded connection
• Thermal insulation shell
• Installation and operating instructions (digital)

Optional accessories:

• ClimaForm cold insulation to prevent condensation
• CIF module: Modbus TCP, Modbus RTU, BACnet IP, BACnet MS/TP, LON, PLR, CANopen
• Pt1000 (B) pipe clamp sensor (for domestic hot water)
• Pt1000 (AA) sensor for installation in immersion sleeve
• Differential pressure sensor

Operating data

• Pumping medium: Water, ethylene glycol, propylene glycol
• Min. medium temperature: -10 &deg,C
• Max. medium temperature: 110 &deg,C
• Min. ambient temperature: -10 &deg,C
• Max. ambient temperature: 40 &deg,C
• Maximum operating pressure: 10 bar
• Minimum inlet head at 50&deg,C: 3 m
• Minimum inlet head at 95&deg,C: 10 m
• Minimum inlet head at 110&deg,C: 16 m

Motor data

• Energy efficiency index (EEI): 0.18
• Mains connection: 1~230 V &plusmn,10%, 50/60 Hz
• Current (min): 0.11 A
• Current (max): 0.95 A
• Rated motor power: 114 W
• Min. speed: 750 rpm
• Max. speed: 3050 rpm
• Power consumption: 7 W
• Power consumption: 135 W
• Emission of interference: EN 61800-3,2004+A1,2012 / Residential area (C1)
• Immunity to interference: EN 61800-3,2004+A1,2012 / Industrial area (C2)
• Insulation class: F
• Protection class: IPX4D
• Cable gland: 5 x M16x1.5

Materials

• Pump casing: Cast iron
• Impeller: PPS-GF40
• Shaft: Stainless steel
• Bearings: Carbon graphite

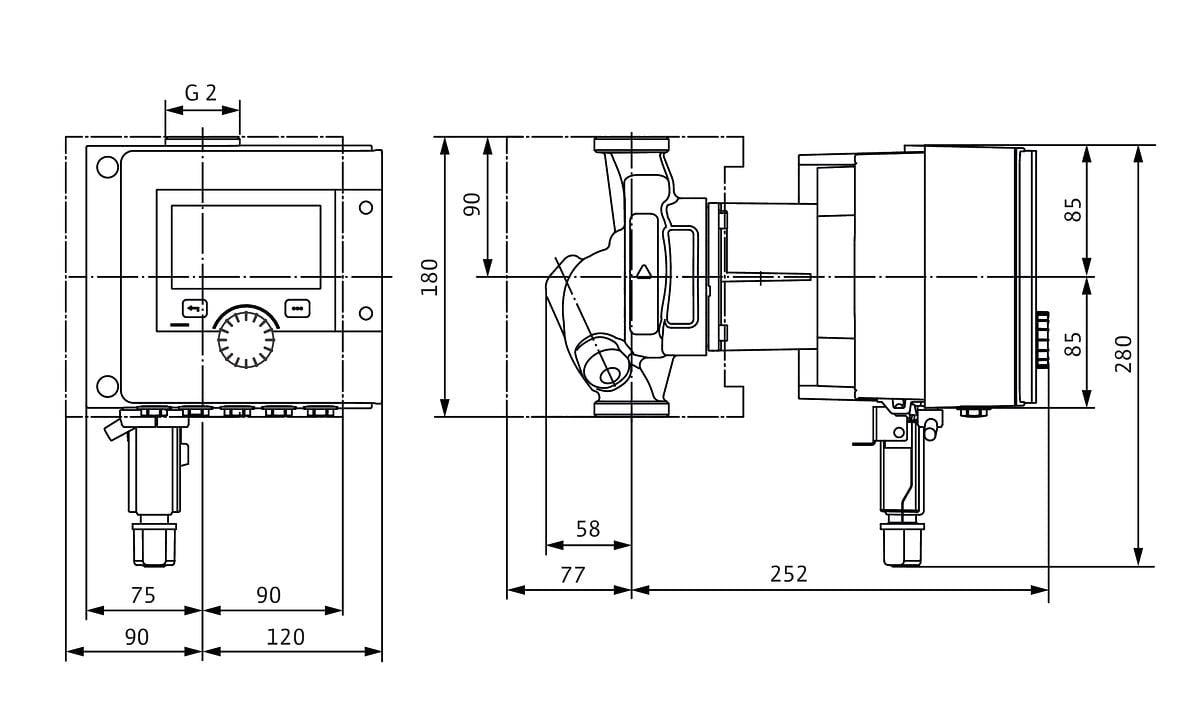

Installation dimensions

• Pump connection: G 2
• Pump connection (alternative designation): RP 1 1/2DN 30
• Length: 180 mm

Ordering information

• Manufacturer: Wilo
• Product designation: Stratos MAXO 30/0.5-6 PN 10
• Net weight approx.: 7.2 kg
• Article number: 2186189
