WILO Wet Rotor High-Efficiency Pump Stratos PICO plus 30/0.5-4, G2, 20W

High-efficiency pump WILO-Stratos PICO plus, electronically controlled

Wet-rotor circulation pump with screw connection, electronically commutated synchronous motor (ECM technology) that is resistant to blocking current (up to 90% energy savings compared to an uncontrolled pump) and integrated electronic power control for stepless differential pressure control.

Can be used for all heating and air conditioning applications (-10°C to +110°C).

Control mode selectable according to application for radiators/underfloor heating.

Control modes:

• Permanent, automatic power adjustment to system requirements without setpoint specification Wilo-Dynamic Adapt plus (factory setting)
• Setting assistant for number of radiators or underfloor heating area
• Variable differential pressure (&Delta,p-v)
• Constant differential pressure (&Delta,p-c)
• Constant speed (n-const.)

Functions:

• Automatic night setback
• Fault/warning message display including description and error code in plain text
• Ventilation routine for automatic ventilation of the rotor chamber
• Manual restart function for additional unblocking of the pump if required
• Key lock
• Function to reset the electricity meter or settings to factory settings
• Dry-running detection
• Automatic unblocking function and integrated motor protection
• Supports hydraulic balancing with the Wilo-Assistant App

Display:

• Control mode
• Setpoint
• Flow rate
• Head
• Speed
• Power consumption
• Electrical consumption
• Active influences (e.g. night setback, ventilation)

Design:

• Graphic color display with operation via a single-button manual control level
• Slot for Wilo communication module as an interface for e.g. Bluetooth
• Reading and setting operating data as well as e.g. creating a commissioning report via Bluetooth interface (as an accessory) using the Wilo-Assistant App
• Minimum consumption only 3 W
• Thermal insulation shell as standard
• 5 years warranty

Optional accessories:

• Wilo-Smart Connect Module BT for Bluetooth connection to mobile devices using the Wilo-Assistant App
• Wilo-Connect module BMS for interface expansion for building management systems (BMS)
• Wilo-Connect module Modbus RTU for interface expansion for building management systems

Operating data

• Fluid: Water, ethylene glycol, propylene glycol
• Min. fluid temperature: -10 °C
• Max. fluid temperature: 110 °C
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 40 °C
• Maximum operating pressure: 10 bar
• Minimum inlet head at 50°C: 0.5 m
• Minimum inlet head at 95°C: 3 m
• Minimum inlet head at 110°C: 10 m

Motor data

• Energy efficiency index (EEI): 0.16
• Mains connection: 1~230 V &plusmn,10%, 50/60 Hz
• Motor rated power: 15 W
• Speed min.: 700 rpm
• Speed max.: 3400 rpm
• Power consumption: 3 W
• Power consumption: 20 W
• Emissions: EN 61000-6-3
• Immunity: EN 61000-6-2
• Electromagnetic compatibility: EN 61800-3
• Insulation class: F
• Protection class: IPX4D
• Cable gland: 1 x PG11

Materials

• Pump housing: Cast iron
• Impeller: PP-GF40
• Shaft: Stainless steel
• Bearings: Carbon, metal-impregnated

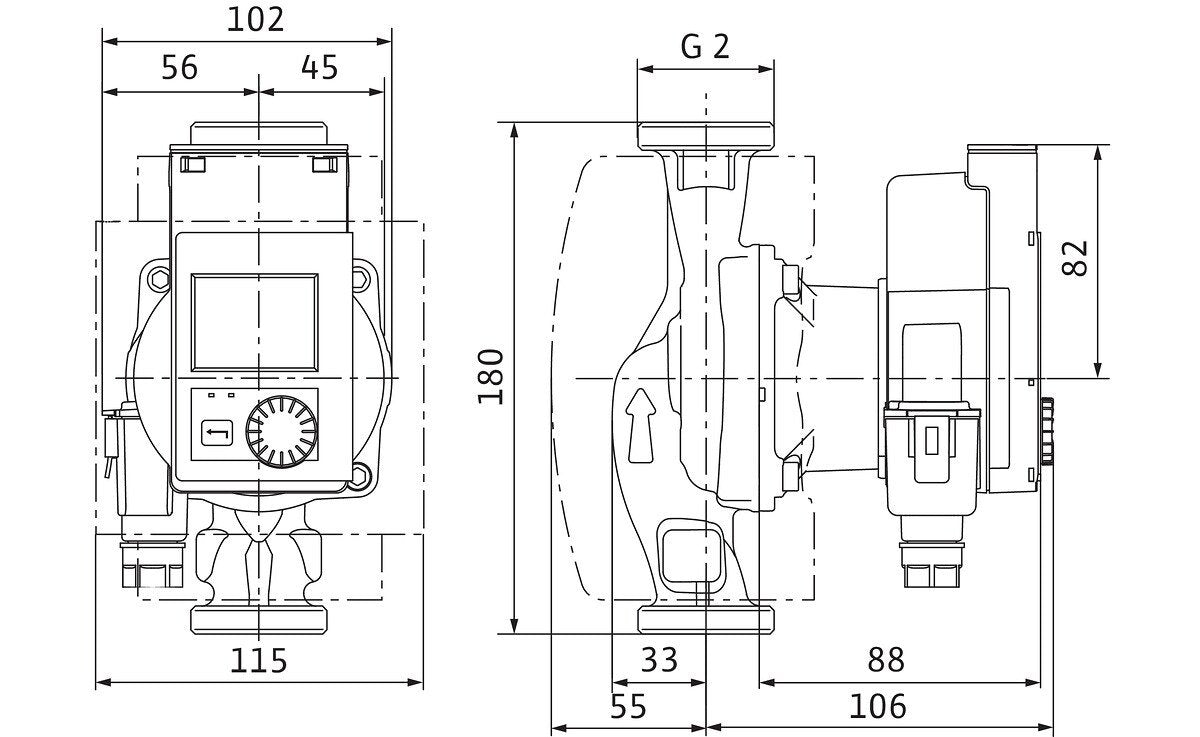

Installation dimensions

• Pump connection: G 2
• Pump connection (alternative designation): RP 1 1/2DN 30
• Length: 180 mm

Order information

• Manufacturer: Wilo
• Product name: Stratos PICO plus 30/0.5-4
• Net weight approx.: 2.03 kg
• Article number: 4244379
