Art. no.
308889
VIEGA Multiplex function unit 6163.2 DN40/50/1070 brass chrome-plated
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
66,99 €
Unavailable
In stock
1014 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM

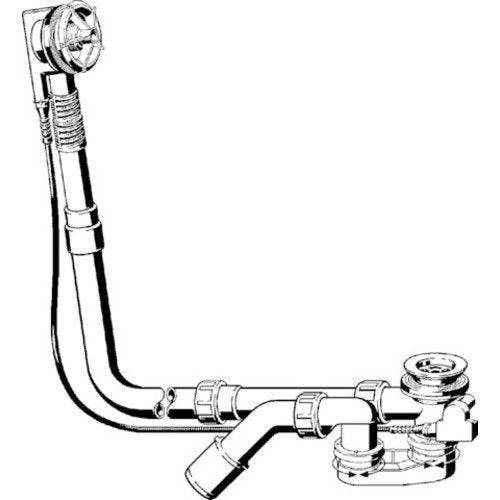

Multiplex waste and overflow set
functional unit
flat design, only 33 mm space required behind the bathtub
- Without: Rotary escutcheon, valve cone
Features
Odour trap, 45° waste bend, chrome-plated valve
Technical data
Water seal height 50 mm
Drainage capacity at 300 mm accumulation height 0.92 l/s
Overflow capacity at 60 mm accumulation height above centre of overflow opening 0.63 l/s
quality-monitored according to DIN EN 274
Model 6163.2
Article number 308 889
DN (Nominal Diameter): 40/50
Bowden cable length: 1070
L (Length) (Range): 130
H (Height) (Range): 180
Bathtub extra-long
for bathtubs with waste hole-Ø 52
functional unit
flat design, only 33 mm space required behind the bathtub
- Without: Rotary escutcheon, valve cone
Features
Odour trap, 45° waste bend, chrome-plated valve
Technical data
Water seal height 50 mm
Drainage capacity at 300 mm accumulation height 0.92 l/s
Overflow capacity at 60 mm accumulation height above centre of overflow opening 0.63 l/s
quality-monitored according to DIN EN 274
Model 6163.2
Article number 308 889
DN (Nominal Diameter): 40/50
Bowden cable length: 1070
L (Length) (Range): 130
H (Height) (Range): 180
Bathtub extra-long
for bathtubs with waste hole-Ø 52
