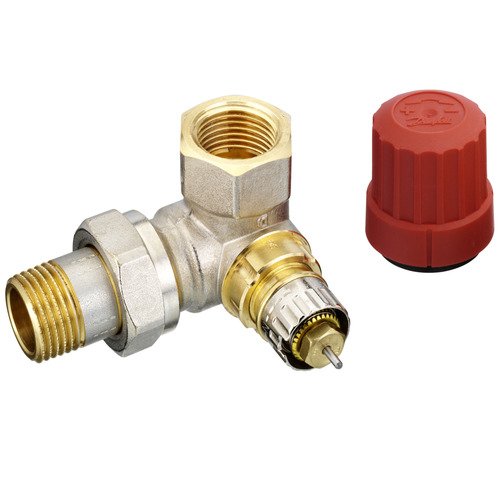

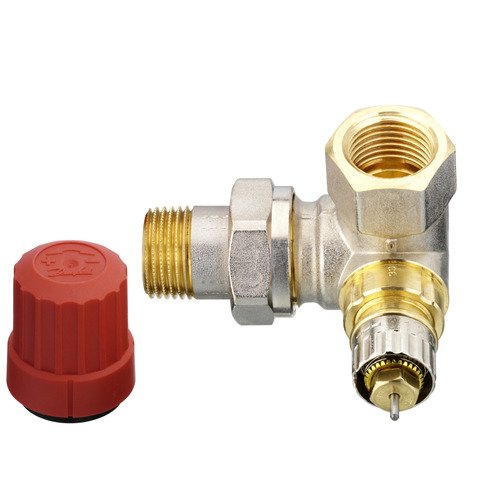

DANFOSS Valve Body RA-N 15 R 1/2, angle left, matte nickel-plated

Danfoss Valve Housing with Presetting According to DIN EN 215 CEN approval with presetting via cam and optical setting control\nDifferential pressure measuring option\nHousing made of brass MS 58\nO-ring gland packing replaceable without system drainage\nProtective cap with red adjusting screw\nMax. operating pressure: 10 bar\nMax. differential pressure: 0.6 bar\nMax. flow temperature: 120 C\nValve body: R 1/2 WE left\nSurface: nickel-plated\nKvs value (m3/h) with actuator: 0.04-0.90\nKv value (m3/h) at AP range 1/2K\nwith RA sensor: 0.43/0.73\n\nBrand: Danfoss\nType: RA-N 15\nOrder No.: 013G0234
