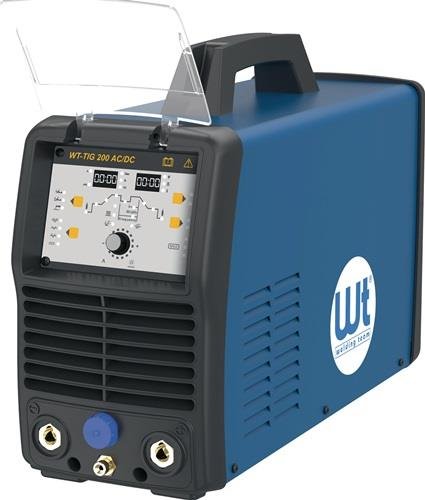

TIG welding system TIC welding system 5-200 A gas-cooled

Inverter technology · ideally suited for assembly work due to IP21S protection class, generally also for outdoor work · TIG pulsing enables welding with reduced heat input · HF high-frequency ignition starts TIG welding without touching the workpiece · timed fan with standby mode · adjustable balance · precise adjustment of welding parameters via digital display · device equipped with PFC (Power Factor Correction), enables best use also with cable reels · optionally with water cooling · multi-voltage from 110 to 230 volts · 9 programs storable · AC triangular wave welding output: Reduced heat input for the same current setting, particularly useful for welding thin metal · AC sine wave welding output · AC square wave · MMA mode · adjustable welding curve · Scope of delivery: TIG welding system, earth cable 4 m assembled, gas hose 4 m, pressure reducer 200 bar Argon / CO2, power cable 4 mFurther technical characteristics:· Width: 190mm· Length: 580mm· Operating modes: 2-stroke / 4-stroke / spot / pulse· Ignition type: high frequency· Weight: 15.5kg· Mobility: portable· Protection class: IP21 S· Current type: AC· Version: TIC welding system· Welding current at 100% ED/40° C: 155A· Height: 350mm· Welding processes: TIG (AC/DC), manual electric· Mains voltage: 230 V / 50 Hz· Fuse protection: 16A· Pulsing: 0.5-999Hz· Power consumption: 5kVA· No-load voltage: 75.6V
