T TECE
Art. no. 9300600

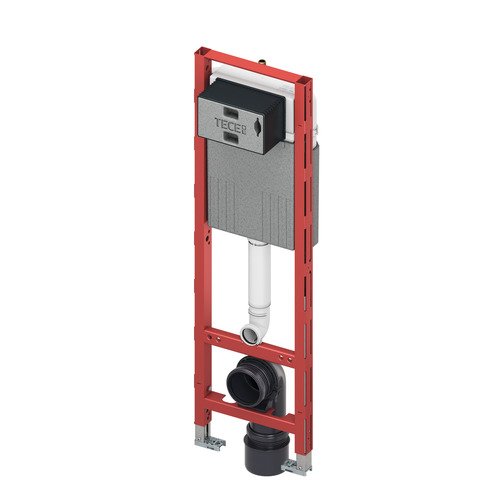

TECEprofil WC module with Compact 320 cistern, installation height 1120 mm

  • High-quality materials
  • Fast and secure shipping
  • Easy 30-day returns
  • Purchase on account: 120-day payment terms
Quantity/Size:
307,99 €
incl. VAT- Shipping calculated at checkout
Log in & order
In stock 1027 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
TECEprofil WC module with Compact 320 cistern, height 1120 mm
WC module including easy fit flush plate installation. For fastening to TECEprofil profile tubes or for installation in metal or wooden stud walls and as a pre-wall or corner module, also suitable for single block installation.

Compact 320 cistern for front actuation:
  • Safety tank made of impact-resistant plastic, tested according to EN 14055
  • Cistern completely pre-assembled and sealed
  • Cistern connection with external thread R 1/2 at the top, compatible with quick adapters
  • 3-way corner valve, shut-off valve with flushing function when filling valve is installed
  • 7 litre tank volume, 6 litre pre-set standard flush volume, 4.5 litre flush volume adjustable at any time, 3 litre partial flush for dual-flush technology, setting of a 4/2 litre flush volume optionally possible, remaining volume usable for immediate cleaning flush.
  • condensate insulated
  • for TECE flush plates and WC fittings
  • can be used as a single or dual-flush cistern
  • easy fit flush plate installation
  • Installation tunnel for service opening, can be shortened without tools
  • low-noise hydraulic filling valve, valve group 1 according to DIN 4109


Module frame:
  • self-supporting, powder-coated
  • two retaining bolts and nuts M 12
  • WC outlet bend DN 90 with transition adapter DN 90/100 made of PP
  • Transition adapter also suitable for horizontal installation
  • WC connection set DN 90, including construction protection plugs


Please order separately:
  • WC flush plate (see actuations)
  • Fastening for pre-wall, corner or wooden stud installation
  • TECE upgrade set 320 dry construction for TECE shower WCs (optional)

Order no.: 9300600
