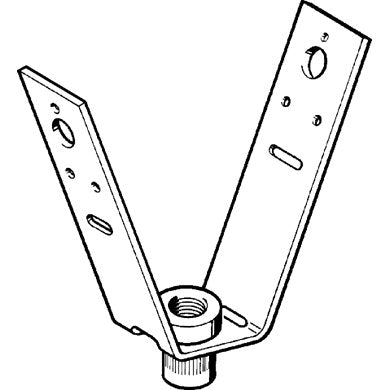

SIKLA Trapezoidal Hanger RM10 Height Adjustable 125684

Trapezoidal hanger with metric RM 10 connection for fastening pipes, equipment or ducts to trapezoidal sheet metal ceilings. Trapezoidal hanger completely pre-assembled (nut riveted). If it is necessary to support larger loads on the trapezoidal sheet metal, the load must be distributed evenly over several hangers, for example by means of a crossbeam. Permissible load: Fz = 0.8 kN per fastening Observe the permissible load-bearing capacity of the trapezoidal sheet metal. Only pipes with low loads (DN 50) should be fastened to trapezoidal sheet metal ceilings. In the case of equipment or ducts, the nominal load per hanger should not be exceeded. An M8 x 100 hexagon screw is recommended for fastening. Each screw connection must be secured by a lock nut. The use of steel blind rivets or sheet metal screws is not permitted for sprinkler systems. Type M10 for sprinkler systems according to FM less than or equal to 3. Material: Steel strip 25 x 2.5 mm, strip galvanized Make: TRH - RM 10 Manufacturer: Sikla
