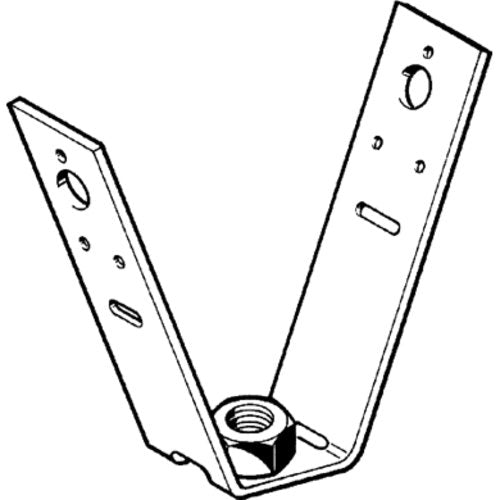

SIKLA Trapeze Hanger M 8 125693

Trapezoidal hanger with M8 metric connection for fastening pipes, equipment or ducts to trapezoidal sheet metal ceilings. Trapezoidal hanger completely pre-assembled (nut riveted in). If it is necessary to support larger loads on the trapezoidal sheet metal, the load must be distributed evenly over several hangers, for example by means of a crossbar. Permissible load: Fz = 0.8 kN per fastener Observe the permissible load-bearing capacity of the trapezoidal sheet metal. Only pipes with low loads (DN 50) should be fastened to trapezoidal sheet metal ceilings. For equipment or ducts, the nominal load per hanger should not be exceeded. An M8 x 100 hexagon head screw is recommended for fastening. Each screw connection must be secured with a lock nut. The use of steel blind rivets or self-tapping screws is not permitted in sprinkler systems. Type M8 for sprinkler systems according to VdS guidelines VdS - Trapezoidal hanger TRH - G4820032. Material: Steel strip 25 x 2.5 mm, strip-galvanized Make: TRH - M8 Manufacturer: Sikla
