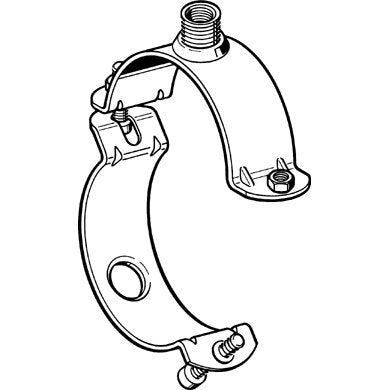

SIKLA Pipe Clamp Stabil D-3G 40-45mm 11/4 without Insert

Two-part pipe clamp with threaded connection options M16/M10/M8 for the creation of pipe supports in utility systems. Articulated design with welded nuts for the tensioning screws. Tensioning screw pre-assembled on the articulated side, inserted through on the opposite side and secured against falling out. FM sizes 1 to 4 are only approved with M10 or larger. For FM applications, at least M10 must be used. For VdS applications > 2 to 4, at least M10 must be used. Material: Steel, electro-galvanized Approvals / Conformity: VdS Approval No. G4920027, * = FM Approval (further FM-approved clamp: Stabil D-M16) For approval-compliant installation (FM and VdS) of the Stabil D-3G/M variants, the M10 or M16 connection thread must be used for the clamping range 219 - 225. Brand: Stabil D-3G - 40-45 Manufacturer: Sikla
