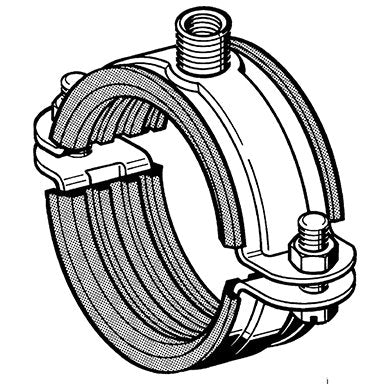

SIKLA Pipe Clamp Stabil D-3G 138-144mm 5 with Insert

Two-part pipe clamp with threaded connection options M16/M10/M8 for creating sound-insulated pipe supports in technical building systems. Articulated design with welded nuts for the tensioning screws. Tensioning screw pre-assembled on the articulated side, inserted through on the opposite side and secured against falling out. The tensioning screws and their corresponding nuts are supplied loose. Material: Pipe clamp: Steel, galvanised Sound insulation insert: SBR/EPDM, black (profile rubber see Chapter Sound Insulation Elements), permanently glued in. Approvals / Conformity: This product has been awarded the quality marks Pipe Fastening and Fire-Tested Pipe Fastening and is subject to external monitoring according to RAL GZ-655. Make: Stabil D-3G m.e.- 138-144 Manufacturer: Sikla
