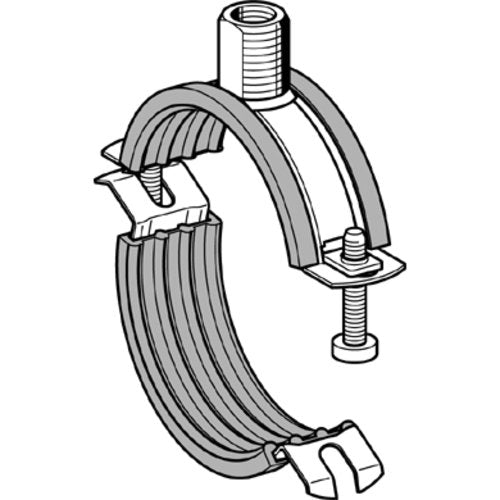

SIKLA Pipe Clamp Ratio S 64-71mm with Lining M8/M10/M16 154868

Two-piece hinged pipe clamp with quick-release fastener including pre-assembled tensioning screws, secured against falling out, for mounting pipelines in supply systems. Suitable for sound-decoupled pipe fastening when sound insulation requirements according to DIN 4109 are met. Suitable for ceiling, floor and wall mounting and for sound-decoupled pipe fastening when sound insulation requirements according to DIN 4109 are met. The positively bonded rubber profile is captive and allows the pipe to be rotated and slid easily during assembly without the rubber getting jammed. Recommended down to -0°C under normal climatic conditions. Material: Pipe clamp: Steel, electro-galvanized Sound insulation insert: SBR/EPDM, black Insertion loss: up to 18 dB(A) Fire-tested pipe fastening with external monitoring according to RAL GZ-655. Brand: Ratio S - 64-71 Manufacturer: Sikla
