SIKLA Pipe Clamp Ratio S 57-63mm 2m.Inlay M8/M10/M16 154859

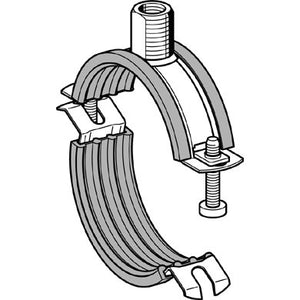

Two-piece hinged pipe clamp with quick-release fastener, incl. pre-assembled tensioning screws, secured against falling out, for mounting pipelines in building services systems. Suitable for sound-decoupled pipe fastening where sound insulation is required according to DIN 4109. Suitable for ceiling, floor and wall mounting and for sound-decoupled pipe fastening where sound insulation is required according to DIN 4109. The form-fit, glued-in profile rubber is captive and allows problem-free rotation and sliding of the pipe during assembly without the rubber jamming. Recommended up to -0°C under normal climatic conditions. Material: Pipe clamp: Steel, electro-galvanized Sound insulation insert: SBR/EPDM, black Insertion loss: up to 18 dB(A) Fire-tested pipe fastening with external monitoring according to RAL GZ-655. Make: Ratio S - 57-63 Manufacturer: Sikla
