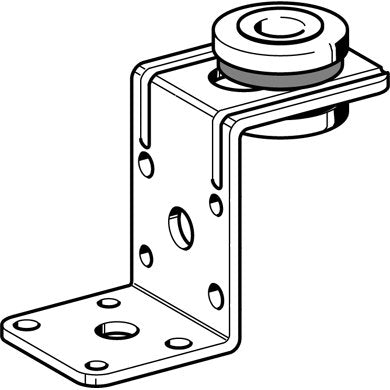

SIKLA Ventilation Angle LUW SZ 189902

Component with M8 metric internal thread for suspending rectangular ventilation ducts directly under the ceiling or as a stand-off installation with threaded rods. Suitable for sound-decoupled duct mounting for sound insulation requirements according to DIN 4109. Sound insulation element pre-assembled to be captive. Adjustable in the slotted hole, suitable for compensating for drilling deviations and construction tolerances. In shaft installations with a mounting rail, this ensures sufficient distance to avoid structure-borne sound contact. Permissible load: Fz = 0.8 kN Mounting preferably with rivets (ø 4 - 5 mm), self-tapping screws (ø 4 - 5 mm) or M8 metric screws. Material Bracket: Steel, galvanized Sound insulation part: EPDM, black, temperature range: -50°C to +110°C Insertion loss: up to 8.7 dB(A) Brand: LUW - SZ M8 Manufacturer: Sikla
