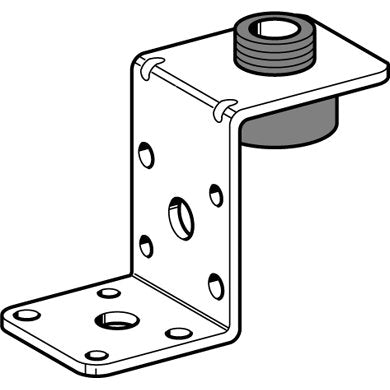

SIKLA Ventilation Angle Bracket LUW A-SZ

Component with M8/M10 metric internal thread for suspending rectangular ventilation ducts directly below the ceiling or as a stand-off mounting with threaded rods. The A-SL and A-SZ variants are suitable for sound-decoupled duct fastening in accordance with sound insulation requirements of DIN 4109. Sound insulation element pre-assembled in a captive manner. For shaft installations with a mounting rail, this ensures sufficient clearance to avoid structure-borne sound contact. Perm. load: A-SZ: Fz = 0.3 kN Mounting preferably with rivets (ø 4 - 5 mm), self-tapping screws (ø 4 - 5 mm) or M8 metric screws. Material Angle: Steel, electro-galvanized Sound insulation part: EPDM, black, temperature range: -50°C to +110°C Insertion loss: up to 8.7 dB(A) Make: LUW A - SZ M8/M10 Manufacturer: Sikla
