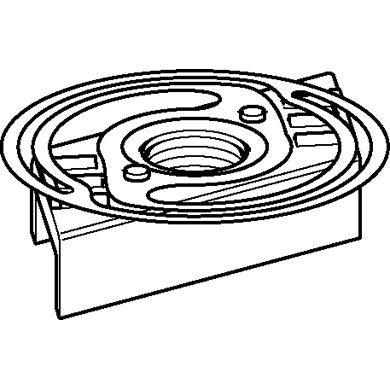

SIKLA CC Thread Plate CC-M10 180218

Threaded plate for fast and efficient fastening of pipe clamps and other components with M10 metric male thread connection to mounting rails with a width of 41. The threaded plate and spring washer are permanently connected. Particularly suitable for assembly in vertical rails or in hard-to-reach places. Can be used regardless of rail height. No snagging on screw heads inside the rail when moving. Permissible load depending on the material thickness of the mounting rail: M10 with material thickness 1.5 mm: Fz = 3.0 kN and Fq = 2.9 kN M10 with material thickness 2.0 mm: Fz = 5.8 kN and Fq = 3.4 kN M10 with material thickness 2.5 mm: Fz = 5.8 kN and Fq = 4.1 kN M10 with material thickness 2.5 mm: Fz = 5.8 kN and Fq = 4.4 kN Tightening torque M10: 40 Nm Material: Threaded plate: steel, strength class 5.6, electro-galvanized Spring washer: spring steel sheet, non-corrosive Make: NT CC 41 - M10 Manufacturer: Sikla
