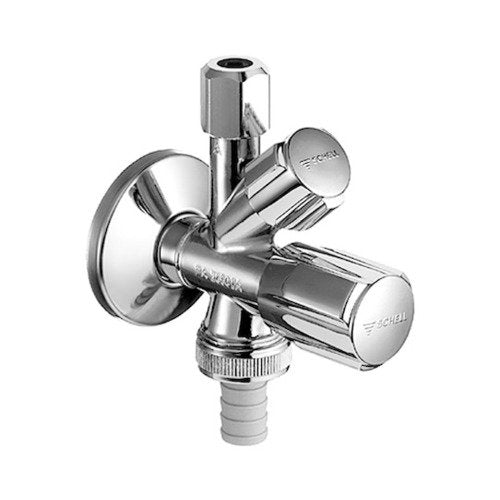

SCHELL Combination Angle Valve COMFORT 3/8 with Hose Connection and Non-Return Valve, chrome-plated.

Combination Angle Valve COMFORT

\n
With COMFORT handle and grease chamber upper part. \n

\n

\n

Scope of delivery

\n

\n
• Combination angle valve
\n
\n
• 2 COMFORT handles
\n
• Backflow preventer RV (EN 1717: EB) in the appliance connection outlet
\n
• Grease chamber upper part
\n
• Long push shaft
\n
\n
• Hose fitting
\n
• Tensile brass cone compression fitting with length compensation
\n
• Push escutcheon Ø 54 mm
\n

\n

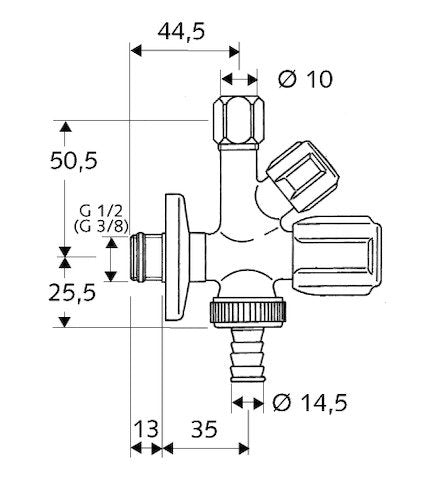

Technical data

\n

\n
• Material: Brass compliant with TrinkwV (German Drinking Water Ordinance)
\n
• Surface: chrome
\n
• Connection: DN 10 G 3/8 AG with ASAG easy
\n
• Outlet: Hose fitting Ø 14.5 mm (DN 20 G 3/4 AG), Ø 10 mm (DN 10 G 3/8 AG)
\n
• Certificates: PA-IX 2850/IA, ACS
\n
• Noise class: I, at 100% flow
\n
• Flow class: A
\n

\n

Note

\n

\n
• In conjunction with pipe aerator: Safety combination HD (EN 1717).
