SANIBEL Urinal Control A17 Mains Powered 230V Complete Set Stainless Steel

sanibel urinal control A17 mains operation 230V complete set

Contactless infrared sensor flushing system. For sanibel concealed urinal flush valves. Mains operation. Suitable for networking with SWS. Configurable via SSC. \n

Scope of delivery

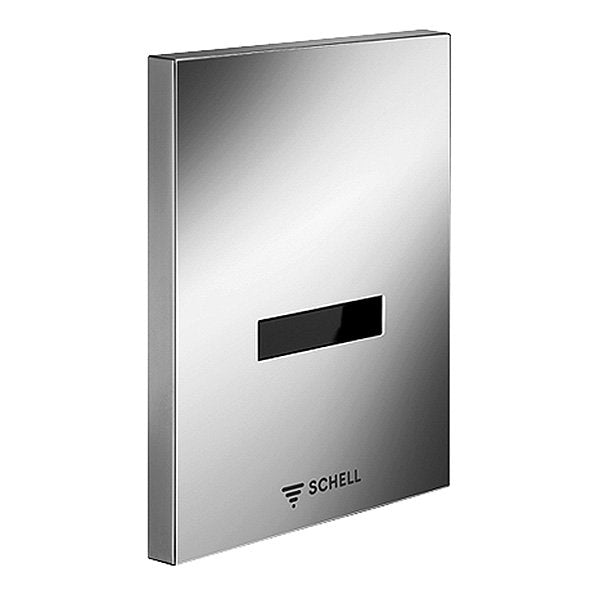

• Front plate with infrared sensor window
• Solenoid valve 6 V with pre-filter
• Mounting frame with infrared sensor electronics, programmable
• Concealed power supply unit 100 - 240 VAC, 50 - 60 Hz

Technical data

• Setting options via SWS/SSC
• Sensor range (short / medium / long)
• Programming via near reflex (Off / On)
• Flush time (1 - 15 s)
• Stagnation flush (Off / 5 - 600 s, every 1 - 240 h after last flush / every 1 - 240 h)
• Pre-flush (Off / 1 s, blocking time 5 - 60 min after last flush)
• Automatic stadium mode (Off / 1s per user, main flush after 20 - 60 s after last use)
• Odor trap flush (Off / 1 - 240 h after last flush)
• Energy saving mode (Off / 1 - 254 h after last use)
• Setting options via near reflex
• Sensor range (short / medium / long)
• Stagnation flush (Off / 30 s, every 24 h after last flush / every 24 h)
• Pre-flush (Off / 1 s)
• Automatic stadium mode (Off / 1s per user)
• Odor trap flush (Off / On)
• Flush time (1 - 15 s)
• Material: Front plate stainless steel
• Surface: Front plate brushed stainless steel
• Dimensions front plate: W 120 mm x H 150 mm x D 12 mm
