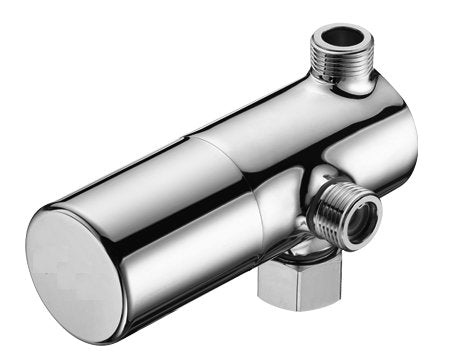

SANIBEL A22 Angle Valve Thermostat for mounting on angle valve with RFV, chrome-plated

sanibel Angle Valve Thermostat A22 for Mounting on Angle Valve with Backflow Preventer

Thermostatic anti-scalding fitting for mounting on an angle valve with G 3/8 male outlet. Setting of the max. outlet temperature, concealed under a cover cap. Thermal disinfection possible (only with tools).

Scope of delivery

• Angle valve thermostat
• ThermoProtect thermostat according to EN 1111, anti-scalding protection in case of cold water supply failure
• 2 backflow preventers RV (EN 1717: EB)
• 2 pre-filters

Technical data

• Material: Plastic cover cap, brass housing compliant with German Drinking Water Ordinance
• Thermal disinfection: possible, after unlocking the temperature lock
• Flow rate at 3 bar: 13 l/min
• Max. operating temperature: 70 °C (short-term, e.g. for thermal disinfection)
• Max. outlet temperature: 33 - 50 °C adjustable (38 °C ± 2 K)
• Surface: chrome
• Connection: G 3/8 IG, G 3/8 AG
• Outlet: G 3/8 AG
• Certificates: P-IX 29876/I, DIN-DVGW, ACS, WRAS applied for
• Noise class: I, at 100% flow rate
