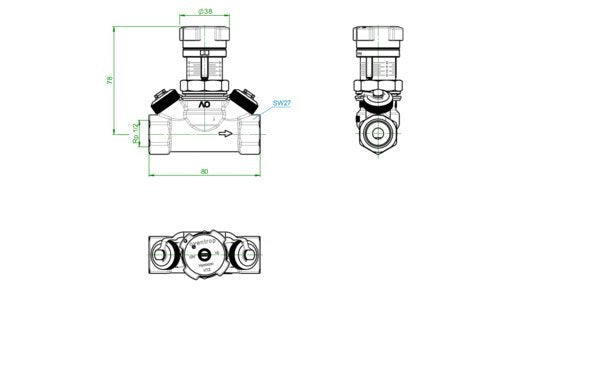

OVENTROP Balancing Valve Hycocon VTZ DN15, 1/2" Female Thread, with Measuring and Drain Valves, Brass

Hycocon VTZ flow control valve in straight-seat design with secured, stepless fine pre-setting that can be checked at any time. Readability of the pre-setting depends on the handwheel position. Valve body and top part made of brass, other media-contacting parts made of dezincification-resistant brass (Ms-EZB) or stainless steel. Maintenance-free spindle sealing with double O-ring. All functional elements are on the handwheel side. Suitable for mounting thermostats (e.g. Uni XH), actuators (e.g. Uni EIB/LON electric actuator), or a differential pressure control valve attachment (M 30 x 1.5 threaded connection) without draining the system (DN 15, DN 20 and DN 25 convertible with Demo-Bloc). Two integrated measuring and draining valves with eco-measuring technology are present on the valve. Insulation for temperatures up to 110°C is included in the scope of delivery (as packaging), with optional separate insulation up to 120°C available as an accessory. Insulation can be used for cooling applications with additional polystyrene shells. Socket thread on both sides according to EN 10226. Can be installed in flow and return lines.
