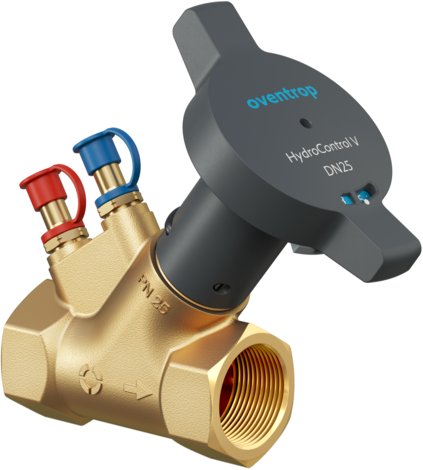

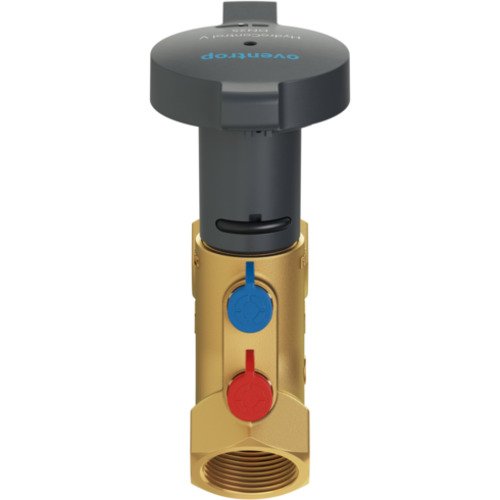

OVENTROP HydroControl V Balancing Valve PN25 DN40, Rp1 1/2 IG, HydroPort, ECB

For hydraulic balancing of distribution lines in central heating and cooling systems with closed circuits. Flow determination by differential pressure measurement with the OV-DMC 3 measuring system, taking into account the presetting values.In angle-seat design with secured, continuously fine presetting that can be checked at any time. All functional elements on the handwheel side. Equipped with two auxiliary valves as standard.Main function: Balancing valveMedium: Water, water-glycol mixturePressure rating: PN 25Nominal size: DN 40Connections: Internal threadConnection size: Rp 1 1/2Kvs: 28.7Operating temperature: -20 - 150 °CPresetting: YesReproducible presetting: YesPresetting lockable: Yes, sealablePresetting display: YesCan be shut off: YesMeasuring connection: YesMeasuring valve: HydroPortMeasurement method: Flow determination by differential pressure measurementDrainage: with HydroPort adapterImpulse line connection: Yes, via HydroPortHousing material: dezincification-resistant brassDesign: Angle seatInstallation location: Flow or returnInsulation shell: Available as accessoryItem no.: 1062412EAN: 4026755479386Manufacturer: Oventrop GmbH &, Co. KGTechnical changes reserved
