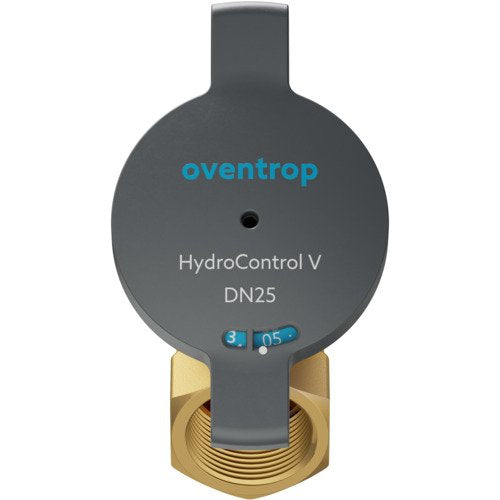

OVENTROP Branch control valve HydroControl V PN25 DN32, Rp1 1/4 IG, HydroPort, EZB

For hydraulic balancing of distribution pipes in central heating and cooling systems with closed circuits. Flow determination by differential pressure measurement with the OV-DMC 3 measuring system, taking into account the preset values. In globe valve design with secured, continuously adjustable fine presetting that can be checked at any time. All functional elements on the handwheel side. Equipped as standard with two auxiliary valves. Main function: Balancing valve Medium: Water, water-glycol mixture Pressure rating: PN 25 Nominal diameter: DN 32 Connections: Internal thread Connection size: Rp 1 1/4 Kvs: 20.8 Operating temperature: -20 - 150 °C Presetting: Yes Reproducible presetting: Yes Presetting lockable: Yes, sealable Presetting display: Yes Shut-off capable: Yes Measuring connection: Yes Measuring valve: HydroPort Measurement method: Flow determination by differential pressure measurement Draining: with HydroPort adapter Impulse line connection: Yes, via HydroPort Housing material: dezincification-resistant brass Design: Globe valve Installation location: Flow or return line Insulation shell: available as accessory Item no.: 1062410 EAN: 4026755479379 Manufacturer: Oventrop GmbH & Co. KG Technical changes reserved
