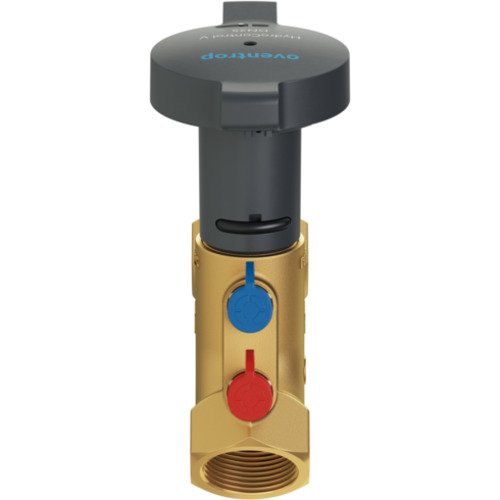

OVENTROP HydroControl V PN25 DN25 flow balancing valve, Rp1 IG, HydroPort, EZB

For the hydraulic balancing of distribution lines in central heating and cooling systems with closed circuits. Flow rate determination by differential pressure measurement with the OV-DMC 3 measuring system, taking into account the presetting values. In angled seat design with secured, continuously fine presetting that can be checked at any time. All functional elements on the handwheel side. Equipped as standard with two auxiliary valves.Main function: Balancing valveMedium: Water, water-glycol mixturePressure rating: PN 25Nominal size: DN 25Connections: Internal threadConnection size: Rp 1Kvs: 11Operating temperature: -20 - 150 °CPresetting: YesReproducible presetting: YesPresetting lockable: Yes, sealableShut-off: YesMeasuring connection: YesMeasuring valve: HydroPortMeasurement method: Flow determination by differential pressure measurementDraining: with HydroPort adapterImpulse line connection: Yes, via HydroPortHousing material: EZB brassDesign: Angled seatInstallation location: Flow or returnInsulation shell: Available as an accessoryItem No.: 1062408EAN: 4026755479362Manufacturer: Oventrop GmbH &, Co. KGSpefications subject to change
