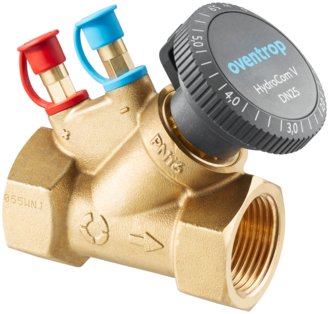

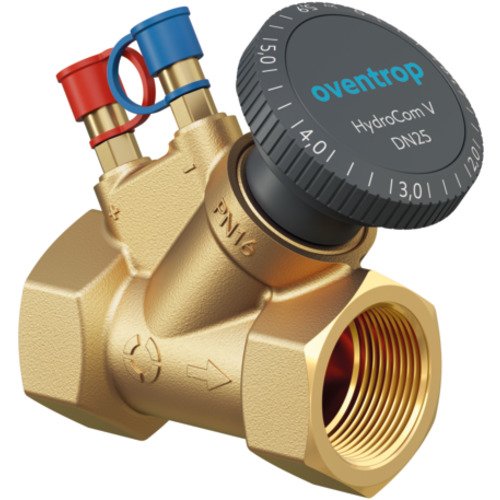

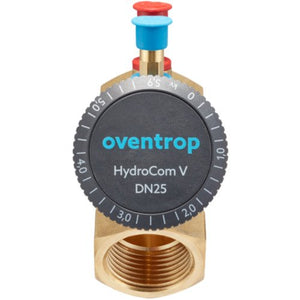

OVENTROP HydroCom V PN16 DN20, Rp3/4 IG, HydroPort, EZB Manually Adjustable Balancing Valve

For the hydraulic balancing of distribution pipes in central heating and cooling systems with closed circuits. In angle seat design with stepless pre-setting. All functional elements on the handwheel side. Equipped as standard with two HydroPort auxiliary valves. Maintenance-free stem sealing.Main function: Balancing valveMedium: Water, water-glycol mixturePressure rating: PN 16Nominal size: DN 20Connections: Internal threadConnection size: Rp 3/4Kvs: 3.7Operating temperature: -20 - 120 °CPre-setting: YesReproducible pre-setting: YesPre-setting lockable: YesPosition indicator: YesShut-off capability: YesMeasuring port: YesMeasuring valve: HydroPortMeasuring method: Flow determination by differential pressure measurementDraining: with HydroPort adapterImpulse line connection: Yes, via HydroPortHousing material: dezincification-resistant brassDesign: Angle seatInstallation location: Flow or returnInsulation shell: available as an accessoryPart no.: 1062706EAN: 4026755471366Manufacturer: Oventrop GmbH & Co. KGTechnical changes reserved
