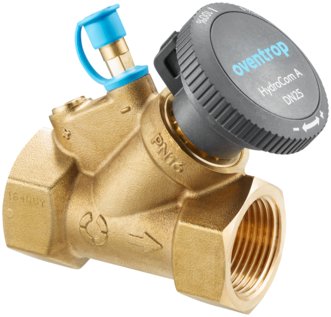

OVENTROP Regulating stopcock HydroCom A PN16 DN32, Rp1 1/4 IF, HydroPort, EZB

For shutting off distribution lines in central heating and cooling systems with closed circuits. Angled seat valve without presetting. A HydroPort auxiliary valve on the downstream side as a connection for the impulse line of a differential pressure control valve. Maintenance-free spindle seal. Main function: Shut-off valve for risers Medium: Water, water-glycol mixture Pressure rating: PN 16 Nominal size: DN 32 Connections: Internal thread Connection size: Rp 1 1/4 Kvs: 13 Operating temperature: -20 - 120 C Can be shut off: Yes Drainage: with HydroPort adapter Impulse line connection: Yes, via HydroPort Housing material: EZB Brass Design: Angled seat Installation location: Flow or return Insulation shell: available as an accessory Item no.: 1062730 EAN: 4026755480375 Manufacturer: Oventrop GmbH &, Co. KG Subject to technical changes
