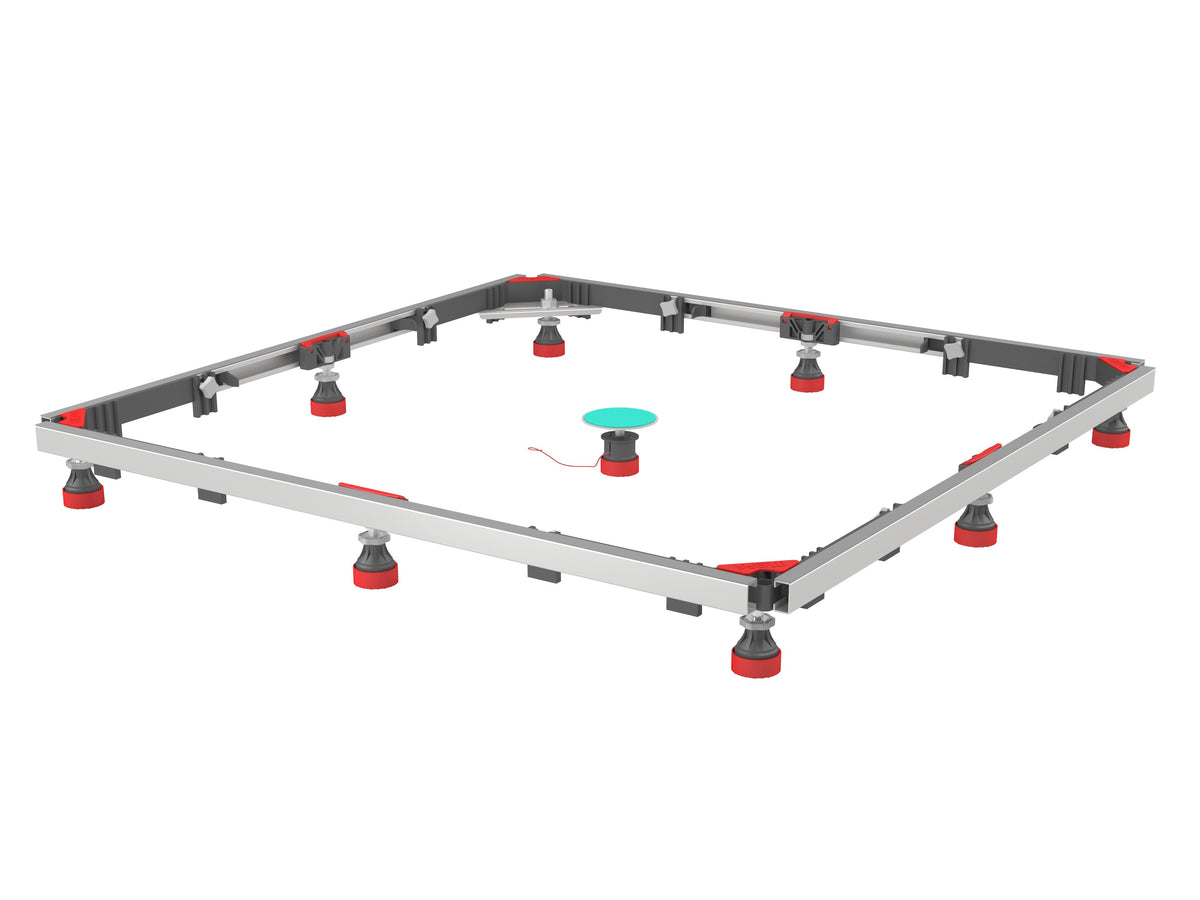

MEPA Installation Frame SF Rectangular Shower Trays SF Steel 120/120

INTENDED USE
- Mounting frame for installing flat, rectangular shower trays made of steel, acrylic, mineral cast

FEATURES
- for shower trays from 700x700 mm to 1200x1200 mm
- height adjustable from 65 mm to 190 mm
- with accessories, height adjustable from 55 mm to 230 mm
- ADS (Anti-Rotation and Sound Insulation System)

SCOPE OF DELIVERY
- 1 mounting frame
- 8 height-adjustable screw feet
- 1 EasyLift for support
- 1 corner brace
- 4 floor brackets
- 8 adapter sleeves (25 mm increase)
- 8 adapter sleeves (50 mm increase)
- Mounting material

ACCESSORIES
- The use of a PU adhesive is required for assembly, e.g. MEPA-Multikraftkleber (Art. No. 150192)
- with accessories (Art. No. 150198) height adjustment can be reduced to 55 mm
- with accessories (Art. No. 150171) height adjustment can be extended to 230 mm
- with accessories (Art. No. 150197) expandable for installation situations with a drain pipe running along the wall
- Sound insulation set (Art. No. 150263)
