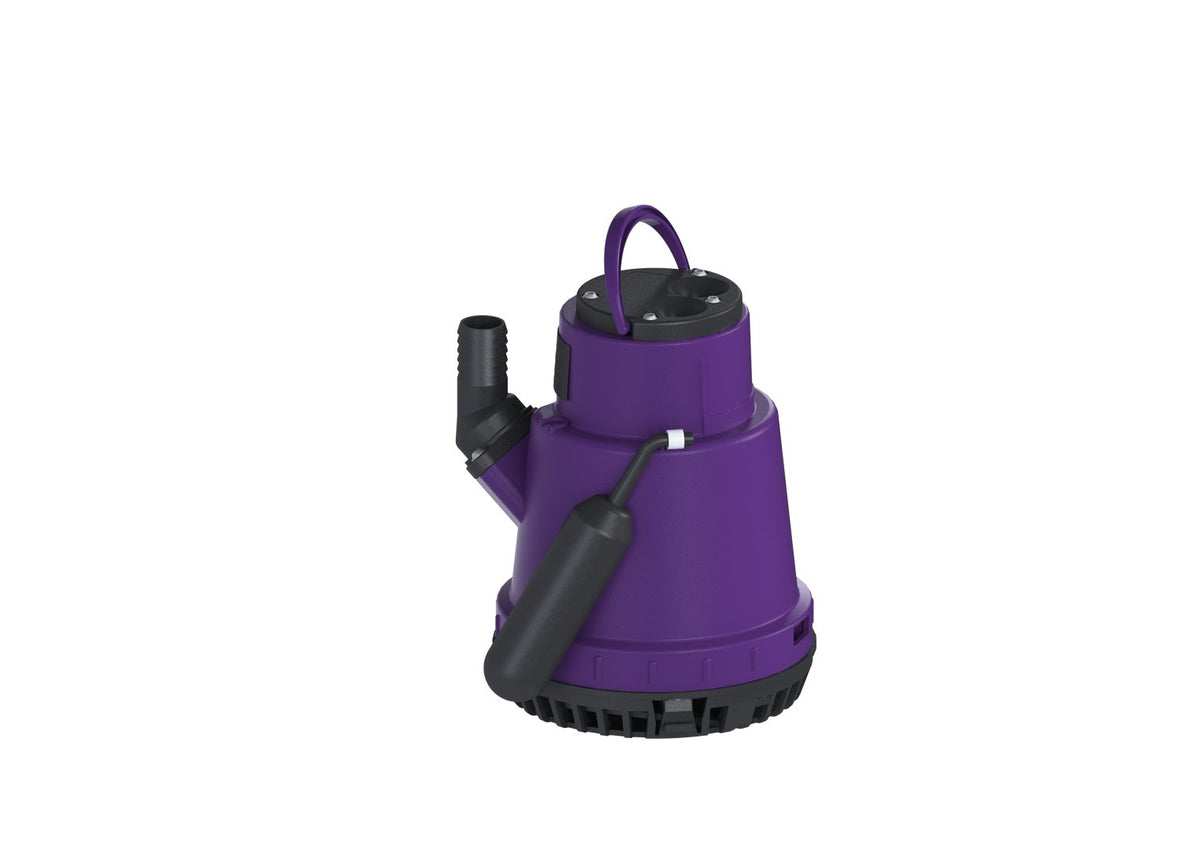

KESSEL Submersible Pump KTP 300 with Float Switch Side/Vertical Outlet

Submersible pump KTP 300 with float switch, with non-return valve, swiveling connection, removable suction basket, water level can be lowered to 8 mm. Design Pump control: with float switch General features Material: plastic, stainless steel Standard: EN 12050-2 Wastewater type: faeces-free Cable length: 10 m Dimensions Net weight: 4.61 kg Gross weight: 4.89 kg Length: 275 mm Width: 390 mm Height: 216 mm Package dimensions length: 276 mm Package dimensions width: 241 mm Package dimensions height: 265 mm Tank/body Pressure port: R 1 Pumping unit Pump: KTP 300 Number of pumps: 1 Pump weight: 4.61 kg Connection type: Schuko 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Protection class: I Insulation class: F Pump protection class: IP 68 (3m) Temperature monitoring: integrated Max. fluid temperature (continuous): 40 °C Hot water resistance short-term (2 min.): 80 °C Max. head: 6 m Speed: 2800 rpm Power P1: 0.34 kW Power P2: 0.21 kW Operating mode: S1 Pump connection cable type: H07RN-F 3G 1.0 mm2 Impeller type: Free-flow impeller Free spherical passage: 10 mm Required pump fusing: C 16 A Length of pump mains connection cable: 10 m Rated current: 1.6 A Control Type of level detection: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko 2-pin
