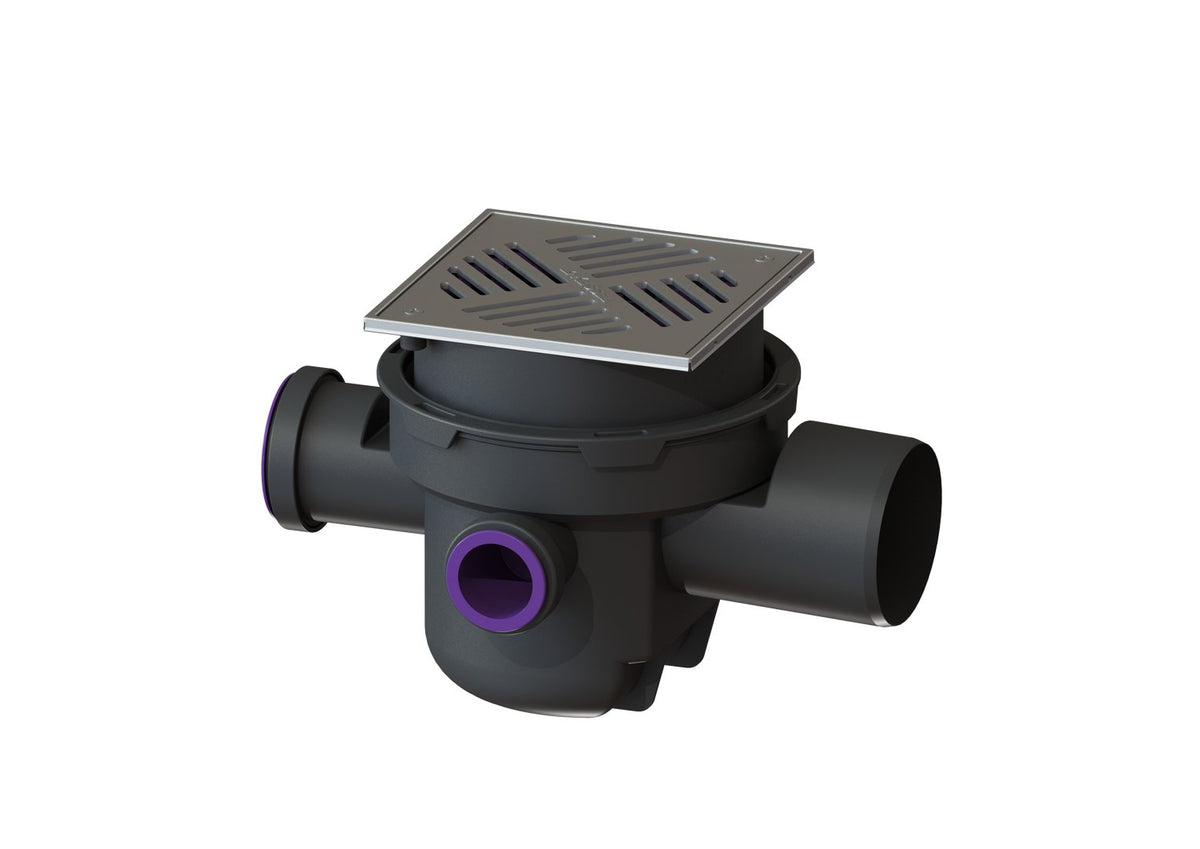

KESSEL floor drain DN100 with backwater valve. 27621

The plastic drain is equipped with a removable backwater trap with two backwater flaps, a manually lockable emergency closure, and a sludge bucket. The main body also features two DN 50 inlets and one DN 70 inlet with blanking plugs. Design Sludge bucket: yes Emergency closure: yes Water-impermeable flange: factory pre-assembled Mechanical backwater flaps: 2 General features Color: black Standard: EN 1253, EN 13564 Nominal diameter (DN): 100 Outside diameter (DA): 110 mm Wastewater type: faeces-free Installation situation: Installation in the floor slab Delivery condition: ready for installation Backwater protection: Type 5 Odor trap: included Sustainable: by using recycled material Dimensions Net weight: 3.23 kg Gross weight: 3.55 kg Recess dimension width: 320 mm Recess dimension length: 400 mm Installation depth: 216 - 266 mm Type of height adjustment: telescopic top section Length: 380 mm Width: 300 mm Packaging dimension length: 380 mm Packaging dimension width: 295 mm Packaging dimension height: 257 mm Container/main body Spigot design: horizontal Cover features Cover type: slotted grate Cover material: stainless steel 1.4301 (V2A) Cover color: silver Load class: K 3 (EN 1253-1) Grate size length: 187 mm Grate size width: 187 mm Grate size height: 4 mm Sludge bucket: yes Grate Grate size length: 187 mm Grate size width: 187 mm Grate size height: 4 mm
