KALDEWEI Shower Tray SUPERPLAN ZERO 90x140 alpine white

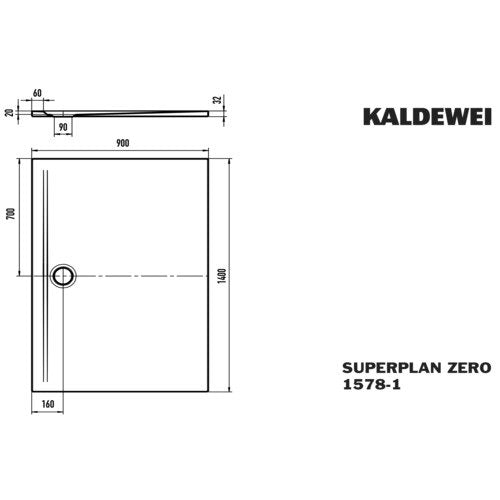

KALDEWEI SUPERPLAN ZERO Shower surface, 900x1400x32 mm, Model no.: 1578-1

Product description:

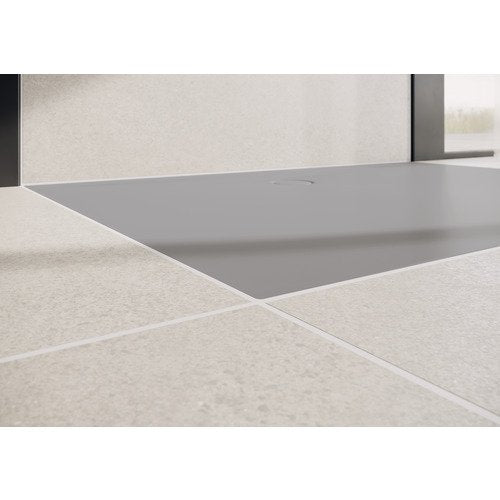

Floor-level shower surface with optimized standing area and accessible from 3 sides without edges.

EU TAXONOMY READY through the official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% circular.

The standard white version of this product
is officially Cradle to Cradle certified® in Silver.

Model: SUPERPLAN ZERO
Model no.: 1578-1
Outer length (mm): 900
Outer width (mm): 1400
Edge height (mm): 32
Depth (mm): 20
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product specification:
Shower surface shape: Rectangle
Installation: Suitable for floor-level installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: side, center
Earthing lug for potential equalization.
Weight (kg): 32.40
CO2 footprint (kg): 42.57

OPTIONAL Installation:
Shower tray sound insulation set DWS
Model no.: DWS: '.........'

Shower tray anti-drumming set DW-ADS
Model no.: DW-ADS: '.........'

Bathtub connection sound insulation tape WAS 70
Model no.: WAS 70: '.........'

System installation box S-IX
Model no.: System installation box SIX: '.........'

Sealing set floor-level
Model no.: Sealing set floor-level: '.........'

Sealing set FLEX
Model no.: Sealing set FLEX: '.........'

Cut protection tape
Model no.: Cut protection tape: '.........'

Shower surface frame FR 5300 FLEX PLUS (for -1 models)
Model no.: 5300_PLUS: '.........'

Shower surface frame FR 5300 FLEX (for -1 models)
Model no.: 5300: '.........'

Installation system frame ESR floor-level (for -1 models)
Model no.: ESR BODENEBEN: '.........'

Center support system MAS 5305: required for side lengths greater than or equal to 900 mm
Model no.: 5305: '.........'

Bathtub installation tape WES 130: For sound insulation and separation between the bottom edge of the product and the brickwork
Model no.: WES 130: '.........'

OPTIONAL Inlet/outlet technology:
Drain cover KA 90: in addition to sets 4103, 4104, 4105
Model no.: Drain cover KA 90: '.........'
Alpine white: '...........'
Sanitary colors: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Drain set KA 90 horizontal: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessories: enamelled drain cover for KA 90
Model no.: 4103: '.........'

Drain set KA 90 flat: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessories: enamelled drain cover for KA 90
Model no.: 4104: '.........'

Drain set KA 90 vertical: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessories: enamelled drain cover for KA 90
Model no.: 4105: '.........'

Shower surface colors:
Alpine white: '...........'
Sanitary colors: '...........'
COORDINATED COLOURS COLLECTION: '...........'

OPTIONAL Surfaces:
Anti-slip surface KALDEWEI SECURE PLUS Antislip: '...........'
Easy-care PERL-EFFECT: '...........'
Almost invisible anti-slip on the standing surface INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces cannot be combined with Pearl effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety technical examination:
TÜV Rheinland confirms KALDEWEI's
Antislip/Full Antislip enamelling to have
slip resistance according to assessment group B
for wet barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in workrooms and work areas
with increased slip hazard (DIN 51130).

Attention: Item number (GTIN) refers to the standard white variant from the product family.
