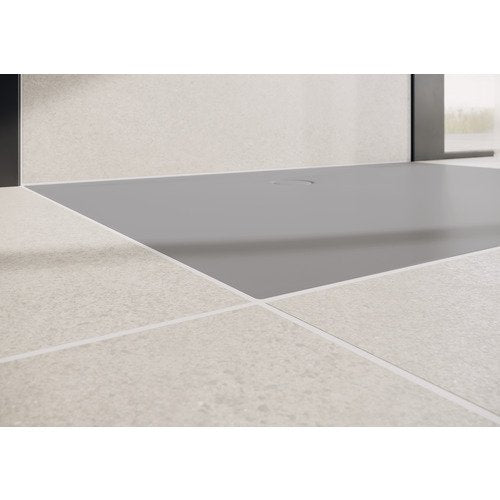

KALDEWEI SUPERPLAN ZERO Shower Tray 90x130 alpine white

KALDEWEI SUPERPLAN ZERO shower surface, 900x1300x32 mm, Model No: 1568-1

Product description:
Floor-level shower surface with optimised standing area, accessible from 3 sides without edges.

EU TAXONOMY READY due to the official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% recyclable.

The white standard version of this product
is officially Cradle to Cradle certified® in Silver.

Model: SUPERPLAN ZERO
Model No: 1568-1
Outer length (mm): 900
Outer width (mm): 1300
Rim height (mm): 32
Depth (mm): 20
Material: KALDEWEI steel enamel
Manufacturer: KALDEWEI

Product specification:
Shower surface shape: Rectangle
Installation: Suitable for floor-level installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: side, center
Grounding lug for potential equalisation.
Weight (kg): 30.10
CO2 footprint (kg): 39.67

OPTIONAL Installation:
Shower tray sound insulation set DWS
Model No: DWS: '.........'

Shower tray anti-drumming set DW-ADS
Model No: DW-ADS: '.........'

Bathtub connection sound insulation tape WAS 70
Model No: WAS 70: '.........'

System installation box S-IX
Model No: System-Installation-Box SIX: '.........'

Sealing set floor-level
Model No: Sealing set floor-level: '.........'

Sealing set FLEX
Model No: Sealing set FLEX: '.........'

Cut protection tape
Model No: Cut protection tape: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No: 5300_PLUS: '.........'

Shower surface foot frame FR 5300 FLEX (for -1 models)
Model No: 5300: '.........'

Installation system frame ESR floor-level (for -1 models)
Model No: ESR BODENEBEN: '.........'

Central support system MAS 5305: required for a side length greater than or equal to 900 mm
Model No: 5305: '.........'

Bathtub installation tape WES 130: For sound insulation and separation between the product's lower edge and the wall enclosure
Model No: WES 130: '.........'

OPTIONAL Inlet/Outlet technology:
Drain cover KA 90: in addition to sets 4103, 4104, 4105
Model No: Drain cover KA 90: '.........'
Alpine White: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Drain fitting KA 90 horizontal: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4103: '.........'

Drain fitting KA 90 flat: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4104: '.........'

Drain fitting KA 90 vertical: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4105: '.........'

Shower surface colours:
Alpine White: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

OPTIONAL Surfaces:
Anti-slip surface KALDEWEI SECURE PLUS Antislip: '...........'
Easy-care PERL-EFFECT: '...........'
Almost invisible anti-slip on the standing area INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces cannot be combined with Perl-effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety technical examination:
TÜV Rheinland confirms that KALDEWEI's
Antislip/Full Antislip enamelling has a
slip resistance according to assessment group B
for wet-loaded barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in workplaces and work areas
with increased risk of slipping (DIN 51130).

Attention: Item number (GTIN) refers to the white standard version from the product family.
