KALDEWEI Shower Tray SUPERPLAN 80x120 alpine white Shower Tray Support

KALDEWEI SUPERPLAN Shower Surface with Bathtub Support, 800x1200x32 mm, Model No: 1842-2

Product Description:

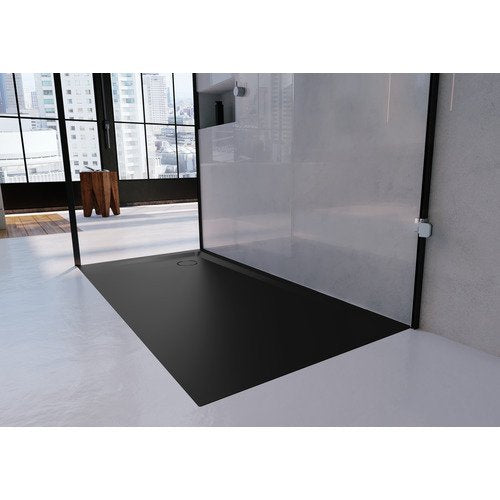

Floor-level shower surface with corner drain, accessible from 2 sides without edges

EU TAXONOMY READY through the official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% recyclable.

The white standard version of this product
is officially Cradle to Cradle certified® in Silver.

Model: SUPERPLAN with Bathtub Support
Model No: 1842-2
Outer Length (mm): 800
Outer Width (mm): 1200
Rim Height (mm): 32
Depth (mm): 25
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product Specification:
Shower surface shape: Rectangle
Installation: Raised installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: Corner drain
Grounding lug for potential equalization.
Weight (kg): 25.50

OPTIONAL Installation:
Shower Tray Soundproofing Set DWS
Model No: DWS: '.........'

Bathtub Connection Soundproofing Tape WAS 70
Model No: WAS 70: '.........'

System Installation Box S-IX
Model No: System Installation Box SIX: '.........'

Sealing Set Floor-Level
Model No: Sealing Set Floor-Level: '.........'

Bathtub Installation Tape WES 130: For sound insulation and separation between the product's bottom edge and the brickwork
Model No: WES 130: '.........'

Sealing Set FLEX
Model No: Sealing Set FLEX: '.........'

OPTIONAL Inlet/Outlet Technology:
Drain Set KA 90 flat: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4104: '.........'

Drain Set KA 90 vertical: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4105: '.........'

Drain Set KA 90 horizontal: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4103: '.........'

Drain Cover KA 90: supplementary to sets 4103, 4104, 4105
Model No: Drain Cover KA 90: '.........'
Alpine White: '...........'
Sanitary Colors: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower Surface Colors:
Alpine White: '...........'
Sanitary Colors: '...........'
COORDINATED COLOURS COLLECTION: '...........'

OPTIONAL Surfaces:
Anti-slip surface KALDEWEI SECURE PLUS Antislip: '...........'
Easy-care PEARL EFFECT: '...........'
Almost invisible anti-slip on the standing surface INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces cannot be combined with Pearl Effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety Technical Inspection:
TÜV Rheinland confirms the
Antislip/Full Antislip enamelling from KALDEWEI has a
slip resistance according to assessment group B
for wet barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in workrooms and work areas
with increased risk of slipping (DIN 51130).

Attention: Item number (GTIN) refers to the white standard version from the product family.
