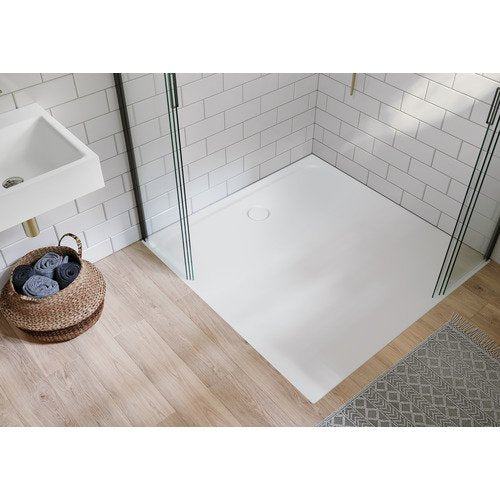

KALDEWEI Shower Tray CAYONOPLAN MULTISPACE 120x120 Alpine White Matt SEC AD

KALDEWEI CAYONOPLAN MULTISPACE shower surface, 1200x1200x32 mm, Model No: 2330-1

Product description:
Barrier-free shower surface with 60% movement area and side drain.

EU TAXONOMY READY through the official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% circular.

The standard white version of this product
is officially Cradle to Cradle certified® in Silver.

Model: CAYONOPLAN MULTISPACE
Model No: 2330-1
Outer length (mm): 1200
Outer width (mm): 1200
Rim height (mm): 32
Depth (mm): 17
Material: KALDEWEI steel enamel
Manufacturer: KALDEWEI

Product specification:
Shower surface shape: Square
Installation: Suitable for flush-to-floor installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: side, center
Grounding lug for potential equalization.
Weight (kg): 35.90
CO2 footprint (kg): 51.41

OPTIONAL Installation:
Shower tray sound insulation set DWS
Model No: DWS: '.........'

Bathtub connection sound insulation tape WAS 70
Model No: WAS 70: '.........'

Sealing set FLEX
Model No: Sealing set FLEX: '.........'

Cut protection tape
Model No: Cut protection tape: '.........'

Installation system frame ESR flush-to-floor (for -1 models)
Model No: ESR FLUSH-TO-FLOOR: '.........'

Center support system MAS 5305: required for side lengths greater than or equal to 900 mm
Model No: 5305: '.........'

Shower surface foot frame FR 5300 FLEX (for -1 models)
Model No: 5300: '.........'

System installation box S-IX
Model No: System installation box SIX: '.........'

Sealing set flush-to-floor
Model No: Sealing set flush-to-floor: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No: 5300_PLUS: '.........'

Bathtub installation tape WES 130: For sound insulation and separation between the bottom edge of the product and the masonry
Model No: WES 130: '.........'

OPTIONAL Inlet/outlet technology:
Drain fitting KA 90 horizontal: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4103: '.........'

Drain fitting KA 90 flat: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4104: '.........'

Drain fitting KA 90 vertical: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessory: enamelled drain cover for KA 90
Model No: 4105: '.........'

Drain cover KA 90: supplementary to fittings 4103, 4104, 4105
Model No: Drain cover KA 90: '.........'
Alpine white: '...........'
Sanitary colors: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower surface colors:
Alpine white: '...........'
COORDINATED COLOURS COLLECTION: '...........'

OPTIONAL Surfaces:

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety technical examination:
TÜV Rheinland confirms that KALDEWEI's
Antislip/Full Antislip enamelling has
slip resistance according to assessment group B
for wet barefoot areas (DIN 51097) and
according to assessment group R10 for slip-resistant
properties in workrooms and work areas
with increased risk of slipping (DIN 51130).

Attention: Item number (GTIN) refers to the standard white version from the product family.
