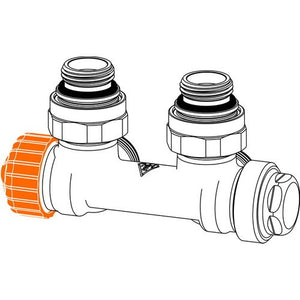

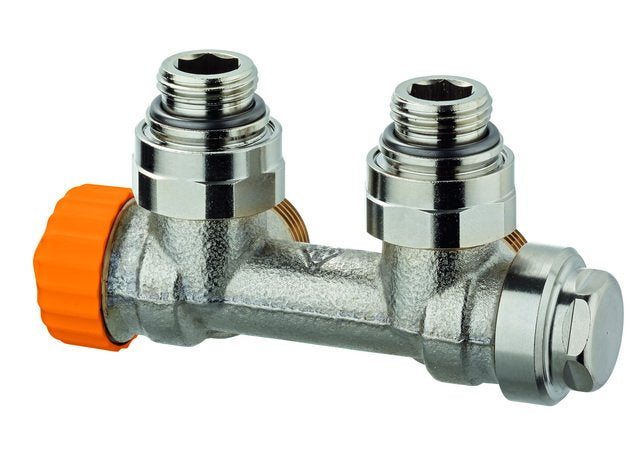

HEIMEIER Multilux ECLIPSE Radiator Valve, Angle-Pattern, Rp 1/2 Female Thread Heating Circuit Connection

Two-pipe universal thermostatic valve body with automatic flow regulation for valve radiators and towel rails with lower two-point connection. On valve radiators, Multilux V Eclipse is also used as a connection fitting without a thermostatic head. Center distance of connections 50 mm (+/- 1.0 mm). The flow is continuously adjustable from 10 to 150 l/h. The set flow will not be exceeded. The valve regulates the flow independently of the differential pressure. Presetting with setting key or open-end wrench SW 11. The setting values are legible on the front and side. Housing made of corrosion-resistant, dezincification-resistant gunmetal, nickel-plated. With stainless steel spindle and double O-ring seal. The thermostatic upper part can be exchanged for the shut-off upper part. This makes it suitable for mounting on the right or left side of the radiator. The complete thermostatic upper part can be replaced with the IMI Heimeier mounting device without draining the system. The Eclipse thermostatic upper part is suitable for all valve bodies with II+ marking. Flow and return can be shut off. Connection for draining and filling device. Connection external thread G 3/4, in conjunction with compression fittings for plastic, copper, precision steel, or multi-layer pipes. Max. operating temperature 120 deg. C, with cladding 90 deg. C. Min. operating temperature -10 deg. C. Permissible operating overpressure PB 10 bar. Min. differential pressure 10-100 l/h: 10 kPa, Min. differential pressure 100-150 l/h: 15 kPa, Max. differential pressure 60 kPa. Make: IMI Heimeier, Type: Multilux V Eclipse, Version: Angle pattern, for valve radiators and towel rails with connection Rp 1/2 internal thread and G 3/4 external thread, Item no. 3866-02.000
