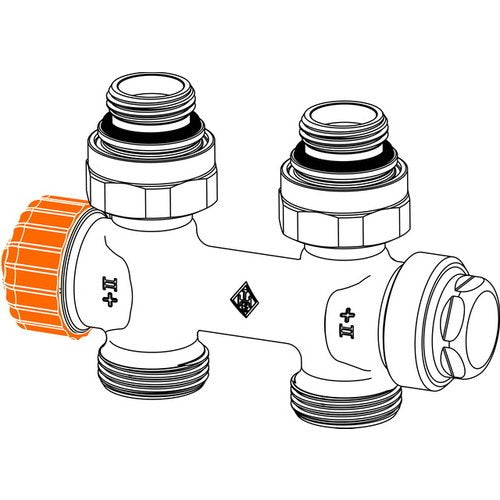

HEIMEIER Multilux ECLIPSE Valve, straight, connection heating circuit Rp 1/2 IG

Two-pipe universal thermostat and valve body with automatic flow control for panel radiators and towel rails with bottom two-point connection. On panel radiators, Multilux V Eclipse is also used as a connection fitting without a thermostatic head. Center distance of connections 50 mm (+/- 1.0 mm). The flow rate is continuously adjustable from 10 to 150 l/h. The set flow rate is not exceeded. The valve controls the flow rate independently of the differential pressure. Pre-setting with setting key or open-end wrench SW 11. The setting values can be read from the front and side. Housing made of corrosion-resistant, dezincification-resistant gunmetal, nickel-plated. With stainless steel spindle and double O-ring seal. The thermostatic top can be replaced by the shut-off top. This makes it suitable for mounting on the right or left side of the radiator. The complete thermostatic top can be replaced with the IMI Heimeier mounting tool without draining the system. The Eclipse thermostatic top is suitable for all valve bodies marked II+. Flow and return can be shut off. Connection for draining and filling device. Connection external thread G 3/4, in conjunction with compression fittings for plastic, copper, precision steel, or multi-layer pipes. Max. operating temperature 120 °C, with cladding 90 °C. Min. operating temperature -10 °C. Permissible operating overpressure PB 10 bar. Min. differential pressure 10-100 l/h: 10 kPa. Min. differential pressure 100-150 l/h: 15 kPa. Max. differential pressure 60 kPa. Make: IMI Heimeier, Type: Multilux V Eclipse, Version: Straight pattern, for panel radiators and towel rails with connection Rp 1/2 internal thread and G 3/4 external thread, Item no. 3865-02.000
