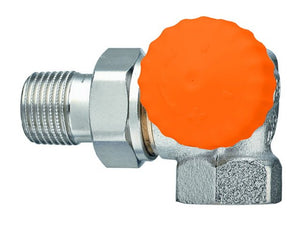

HEIMEIER Thermostatic valve body ECLIPSE Angle corner/right, DN 15

HEIMEIER thermostatic valve body, with automatic flow control. Housing made of corrosion-resistant, dezincification-resistant gunmetal, nickel-plated. With stainless steel spindle and double O-ring seal. The flow rate is continuously adjustable from 10 to 150 l/h. The set flow rate is not exceeded. The valve controls the flow rate independently of the differential pressure. Pre-setting with adjusting key or open-end wrench, SW 11. The setting values are readable from the front and side. The complete thermostatic top can be replaced with the IMI Heimeier mounting tool without draining the system. The Eclipse thermostatic top is suitable for all valve bodies with II+ marking. Internal thread connection for threaded pipe or in conjunction with compression fittings for copper, precision steel or composite pipe. Max. operating temperature 120 deg. C. Min. operating temperature -10 deg. C. Permissible operating overpressure PB 10 bar. Min. differential pressure 10-100 l/h: 10 kPa. Min. differential pressure 100-150 l/h: 15 kPa. Max. differential pressure 60 kPa. Make: IMI Heimeier, Type: Eclipse, Nominal size: DN 15 (1/2), Design: Angle valve, Connection on radiator right, Item no. 3934-02.000
