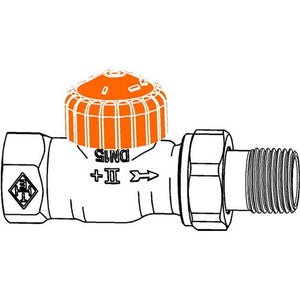

HEIMEIER Thermostatic valve body ECLIPSE straight-way pattern, DN 15

HEIMEIER Thermostatic valve body, with automatic flow control, KEYMARK-certified, tested according to DIN EN 215. Housing made of corrosion-resistant, dezincification-resistant gunmetal, nickel-plated. With stainless steel spindle and double O-ring seal. The flow rate is infinitely adjustable from 10 to 150 l/h. The set flow rate is not exceeded. The valve controls the flow rate independently of the differential pressure. Pre-setting with setting key or open-end wrench, SW 11. The setting values are readable from the front and side. The complete thermostatic top can be replaced with the IMI Heimeier mounting device without draining the system. The Eclipse thermostatic top is suitable for all valve bodies with II+ marking. Internal thread connection for threaded pipe, or in conjunction with compression fittings for copper, precision steel or multi-layer composite pipe. Max. operating temperature 120 deg. C. Min. operating temperature -10 deg. C. Permissible operating pressure PB 10 bar. Min. differential pressure 10-100 l/h: 10 kPa. Min. differential pressure 100-150 l/h: 15 kPa. Max. differential pressure 60 kPa. Make: IMI Heimeier, Type: Eclipse, Nominal size: DN 15 (1/2), Design: Straightway form, Item no. 3932-02.000
