HEIMEIER Multilux 4 - Set two-pipe and one-pipe, white RAL 9016

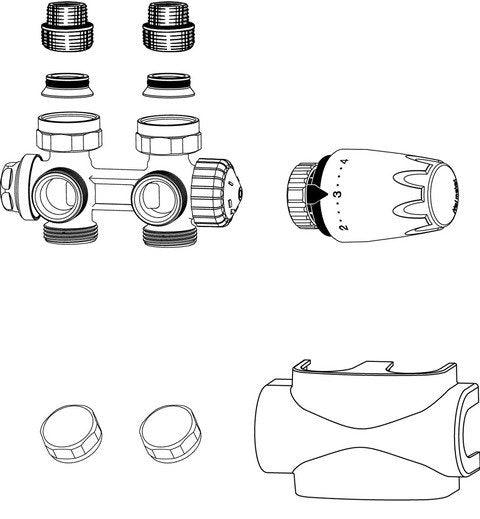

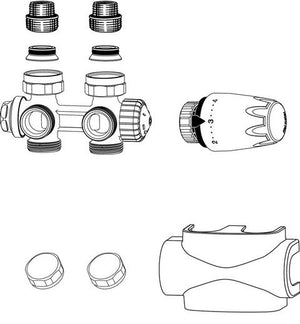

HEIMEIER Multilux 4 - Set convertible for two-pipe and one-pipe heating systems, consisting of: - Multilux 4 thermostatic valve body, - connections for radiators, R 1/2 and G 3/4 connections, - caps for G 3/4 pipe connection, - trim, - DX thermostatic head. The Multilux 4 is made of corrosion-resistant gunmetal and is suitable for installation as an angle or straight-through form. The thermostatic head can be mounted on the left or right (factory-set to the left). For right-hand mounting, the thermostatic top part can be exchanged for the shut-off top part. The center distance of the connections is 50 mm. Stainless steel spindle with double O-ring seal. The outer O-ring and the entire thermostatic top part are replaceable under pressure. With continuous precision presetting and shut-off cone. Sealing on spindles by EPDM O-rings. Pipe-side connection G 3/4 with compression fittings for plastic, copper or precision steel pipes. Permissible operating temperature TB 120 °C, with trim TB 90 °C. Permissible operating overpressure PB 10 bar. DX thermostatic head with closed scale cover and liquid-filled thermostat. High actuating force, lowest hysteresis, optimal closing time. Stable control behavior even with small design control differences.
