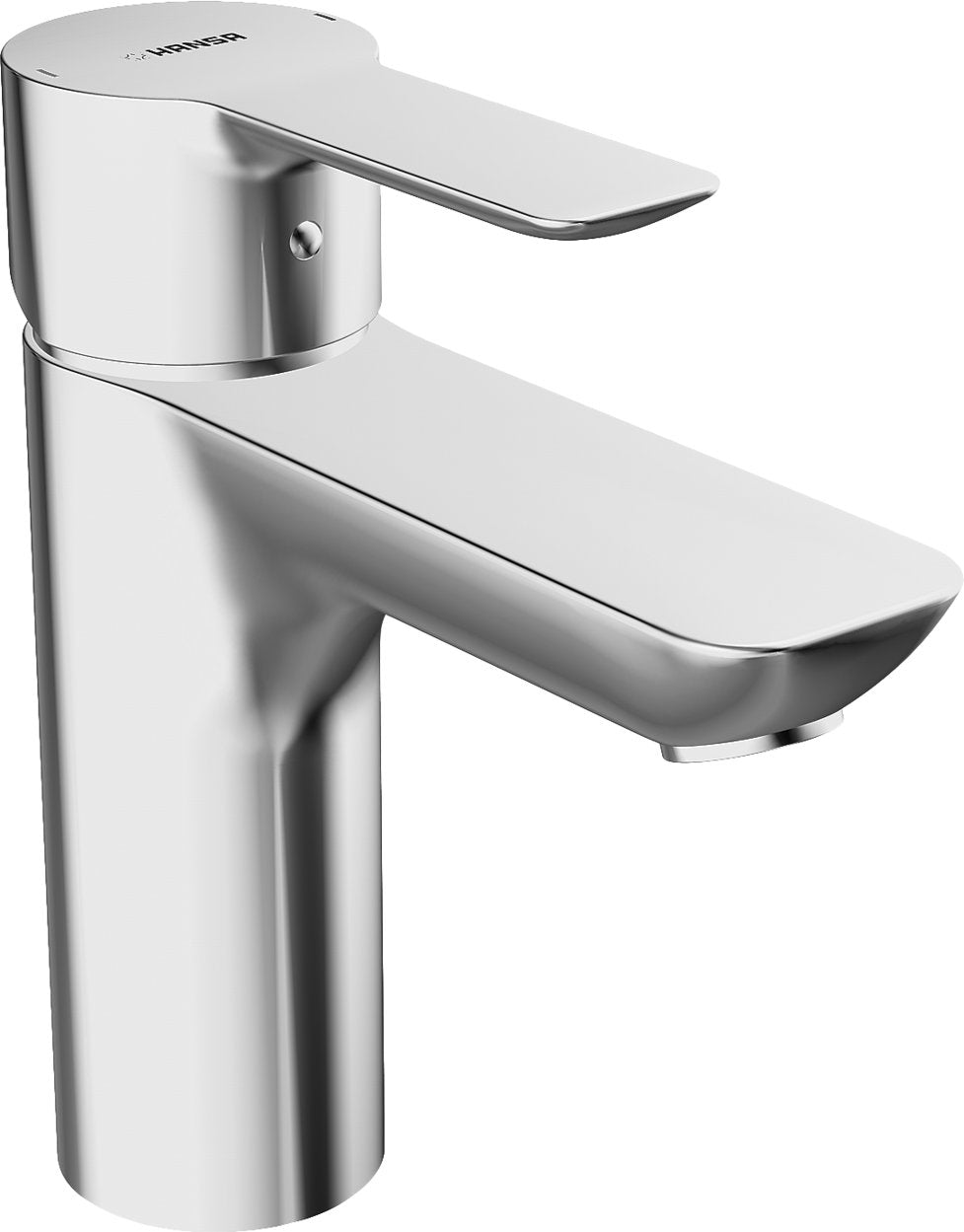

HA Washbasin single-lever mixer HANSALIGNA 0609 with waste set chrome

GENERAL ATTRIBUTES:\n• Product Group: Basin mixer\n• Installation Type: Deck mounted\n• Technical Feature: Single lever mixer\n• Surface: Chrome\n• BIM data available: Yes\n\nPRODUCT FEATURES:\n• Aerator Type: Integrated aerator, screwed directly into the faucet spout without a mouthpiece, PCA® constant flow rate regardless of flow pressure\n• Connection: Connection via flexible pressure hoses\n• Installation: 1-hole\n• Lever/Handle Type: Single-lever handle/grip, lever with H+C marking\n• Spout Type: Fixed spout\n• Extension: Pop-up waste with pull rod\n• Temperature Settings: Temperature limiter, adjustable hot water stop (included in scope of delivery)\n• Mechanical Parts: ø 3.5 classic control cartridge with ceramic sealing discs for water volume and temperature adjustment\n• Special Features: Faucet body made of dezincification-resistant brass (DZR), Rapid mounting system\n\nFLOW FEATURES:\n• Flow at 300 kPa (flow limiter): 6.00 l/min\n\nREGULATIONS / STANDARDS:\n• EN Standard: EN 817\n• Noise Class: I (ISO 3822)\n\nAPPROVALS:\n• DVGW: NW-6506CN0315\n• ABP: PA-IX 38219/IO\n\nTECHNICAL FEATURES:\n• DN Size: DN15\n• Projection: 108 mm\n• Material: Brass\n• Hot Water Supply: max. +70C\n• Working Pressure: 50 - 1000 kPa\n• Connection Size: G3/8\n• Backflow Preventer (EN1717): AA\n\nLOGISTICS:\n• Gross Weight: 1.987 kg\n• Packaging Dimensions: 542 x 196 x 77
