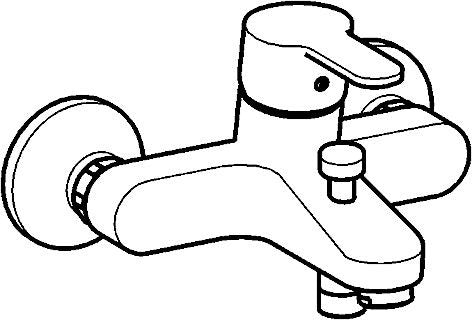

HA Tubs EHM HANSAPRIMO 4944 without shower set chrome

GENERAL ATTRIBUTES:\n• Product group: Bath and shower mixer\n• Installation type: Wall-mounted\n• Technical feature: Single lever mixer\n• Finish: Chrome\n\nPRODUCT FEATURES:\n• Aerator type: CASCADE® aerator\n• Connection: S-connections, Silencer\n• Handle/Control handle type: Single-lever handle/grip, Lever with H+C marking\n• Diverter type: Pull-rod diverter, Automatic reset\n• Temperature settings: Temperature limiter, Adjustable hot water stop (included in scope of delivery)\n• Mechanical parts: ø 3.5 classic control cartridge with ceramic sealing discs for water volume and temperature control, Backflow preventer\n• Special features: Faucet body made of dezincification-resistant brass (DZR)\n• Additional features: Intrinsically safe against backflow in domestic use (according to DIN EN 1717)\nFLOW CHARACTERISTICS:\n• Flow at 300 kPa: 20.40 l/min / 19.20 l/min\n\nREGULATIONS / STANDARDS:\n• EN Standard: EN 817\n• Noise class: I (ISO 3822)\n\nAPPROVALS:\n• DVGW: NW-6506CN0242\n• KIWA: K6116/08\n• ABP: PA-IX 38250/ICB\n\nTECHNICAL CHARACTERISTICS:\n• DN size: DN15\n• Projection: 155 mm\n• Material: Brass\n• Hot water supply: max. +90C\n• Operating pressure: 50 - 1000 kPa\n• Connection size: G3/4\n• Installation distance: 150 ± 15 mm\n• Protection device (EN1717): EB\n\nLOGISTICS:\n• Gross weight: 2.26 kg\n• Packaging dimensions: 210 x 176 x 162
