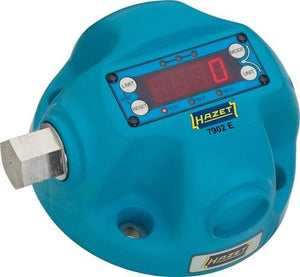

Torque testing device 7902E measuring range 100-1000 Nm H97.5xD.160mm HAZET

Application: Simple and fast checking of torque wrenches Simple, intuitive operation Huge display with 17 mm digits Traffic light function for evaluating the measured value PLUS acoustic signal Calibrated measuring range in clockwise direction Fixed external hexagon drive - SW 27 mm Switchable torque display in Nm, kgfm, kgfcm, lbf.ft, lbf.in, ft.lb, in.lb Selection of desired units configurable Fastening material (not included): Hexagon socket head cap screws ISO 4762 - M10 - 12.9 Gross weight including plastic case and accessories approx. 5.0 kg Easy input of up to 15 different target values and the respective permissible accuracy in the range of ± 1% to ± 15% Accuracy ± 1% (maximum display deviation) Digital display - 3 measuring methods Automatic break point detection (First Peak - Click) Peak value measurement (Final Peak - Dial) Continuous measuring/display value (Track) 3-fold signaling of the measurement result: Digit display in 17 mm font size Traffic light function for evaluating the torque value (Yellow = too low - Green = OK - Red = too high) Acoustic signal Robust aluminum housing for workshop use - powder-coated surface Large, high-contrast, luminous, easy-to-read LCD display with backlight Autonomous operation via power bank (5 V - 1 A) possible Maximum power consumption: 0.5 Wh - energy efficiency level 6 Quick test function with auto-reset - without target value and accuracy specification - without evaluation Compatible with HAZET test software Torque-Testing 7901E-D - Micro USB socket for power supply and data transfer Protection class IP 40 - display and membrane keypad splash-proof 10 adjustable menu languages: German, English, French, Spanish, Italian, Danish, Finnish, Swedish, Norwegian, Portuguese Included in delivery: USB power supply 90-264 Volt AC at 47-63 Hz Output voltage: 5 V - 1000 mA - USB 2.0 A socket Includes mains plug adapters for EU, UK, USA, AUS Cable (2 m) USB 2.0 A plug - USB 2.0 Micro B plug Calibration certificate and quick start guide (detailed operating instructions available online for download) Stable mounting on workbench Drive: 27 mm external hexagon Dimensions / Length: 160 mm x 120 mm x 132.5 mm Net weight (kg): 3.3 kg Further technical characteristics: · Dimensions / Length: 160 x 120 x 132.5 mm · Drive: 27 mm external hexagon · Tightening torque min Nm: 50 Nm · Vehicle manufacturer total: ALFA ROMEO, AUDI, BMW, BMW-MINI, CHEVROLET/GMC, CHRYSLER, CITROËN, DACIA, DAEWOO, DAIHATSU, FIAT, FORD, HONDA, HYUNDAI, ISUZU, JAGUAR, JEEP, KIA, LADA, LANCIA, LEXUS, MAZDA, MERCEDES-BENZ, MITSUBISHI, NISSAN, OPEL/VAUXHALL, PEUGEOT, PORSCHE, RENAULT, ROVER, SAAB, SEAT, ŠKODA, SMART, SUBARU, SUZUKI, TOYOTA, VOLKSWAGEN, VOLVO, DAF, ISUZU Nkw, MAN, MERCEDES-BENZ Nkw, RENAULT Nkw, SCANIA, VAN HOOL, VOLVO Nkw, IVECO, BMW Motorrad, DUCATI, HONDA Motorrad, KAWASAKI, SUZUKI Motorrad, YAMAHA, SAF · Vehicle manufacturer commercial vehicles: DAF, ISUZU Nkw, MAN, MERCEDES-BENZ Nkw, RENAULT Nkw, SCANIA, VAN HOOL, VOLVO Nkw, IVECO · Vehicle manufacturer passenger cars: ALFA ROMEO, AUDI, BMW, BMW-MINI, CHEVROLET/GMC, CHRYSLER, CITROËN, DACIA, DAEWOO, DAIHATSU, FIAT, FORD, HONDA, HYUNDAI, ISUZU, JAGUAR, JEEP, KIA, LADA, LANCIA, LEXUS, MAZDA, MERCEDES-BENZ, MITSUBISHI, NISSAN, OPEL/VAUXHALL, PEUGEOT, PORSCHE, RENAULT, ROVER, SAAB, SEAT, ŠKODA, SMART, SUBARU, SUZUKI, TOYOTA, VOLKSWAGEN, VOLVO · Vehicle manufacturer two-wheelers: BMW Motorrad, DUCATI, HONDA Motorrad, KAWASAKI, SUZUKI Motorrad, YAMAHA · Manufacturer, other: SAF · Length: 160 mm · Net weight (kg): 3.3 kg
