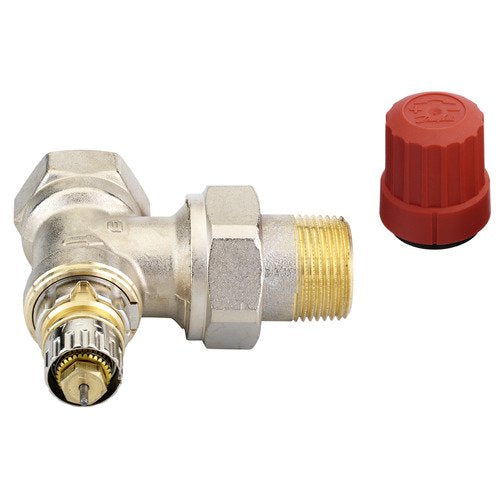

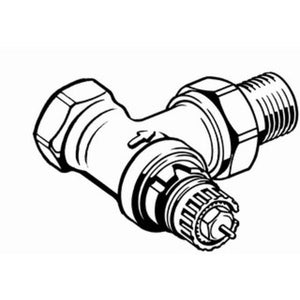

DANFOSS Valve Body RA-N 20 R 3/4, Angle, matte nickel-plated

Danfoss Valve Housing with Presetting According to DIN EN 215 CEN approval with presetting by cam and optical setting control Differential pressure measurement capability Housing made of brass MS 58 O-ring gland can be replaced without draining the system Construction protection cap with red adjusting screw max. operating pressure: 10 bar max. differential pressure: 0.6 bar max. flow temperature: 120 C Valve housing: R 3/4 angle Surface: nickel-plated Kvs value (m3/h) with actuator: 0.10-1.40 Kv value (m3/h) at AP range 1/2K with RA sensor: 0.59/1.04 Make: Danfoss Type: RA-N 20 Order no.: 013G0035
