DALLMER Floor Drain TistoPlan K 10, DN 40/ DN 50, 95 x 95 mm

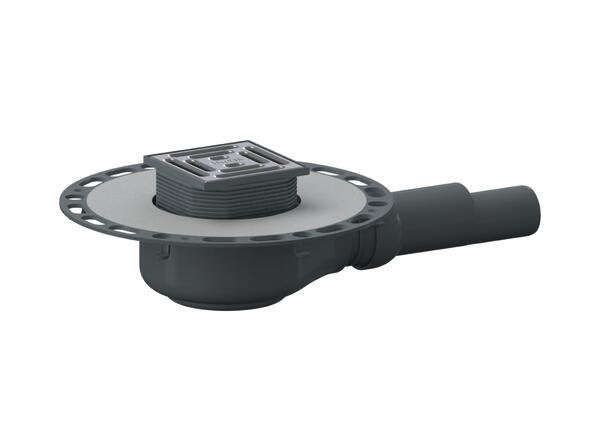

DALLMER Floor Drain TistoPlan K 10

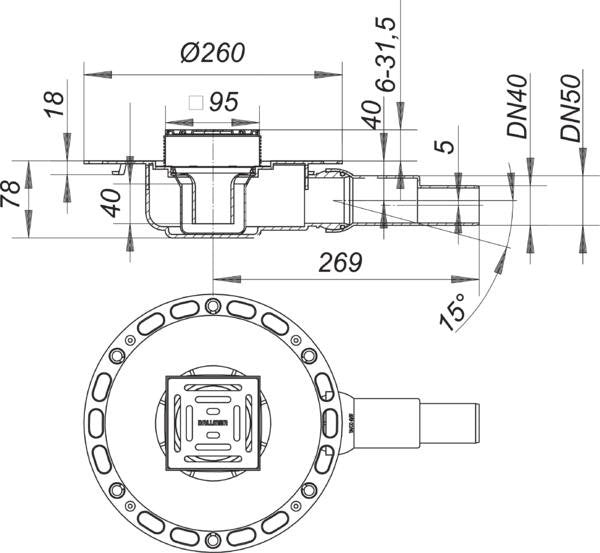

according to DIN EN 1253 (LGA-tested). Floor drain with 73 mm wide flange for secure connection to composite and sheet waterproofing according to DIN 18534. Flange fleece-laminated on the upper side for high adhesive bond to waterproofing materials, with screed anchors on the underside for secure, permanent fixing in the screed, additional reinforcement of the sealing layer by incorporating the supplied alkali-resistant, non-capillary, crack-bridging connection cuff into the composite waterproofing. Connection cuff compatible with all waterproofing materials according to DIN 18534. Drain body made of polypropylene, with integrated secondary drainage, removable two-part trap with 40 mm water seal height, construction protection cover and a 6-31 mm height-adjustable top 100 x 100 mm with ABS frame and 1.4301 stainless steel grating, load class K 3 (300 kg). Drain socket: DN 40/DN 50 lateral, adjustable with ball joint 0-15°. Drainage capacity: 0.6 l/s.
