DALLMER Thin-bed floor drain 61 HT/VC, DN 50/DN 70, 150 x 150 mm

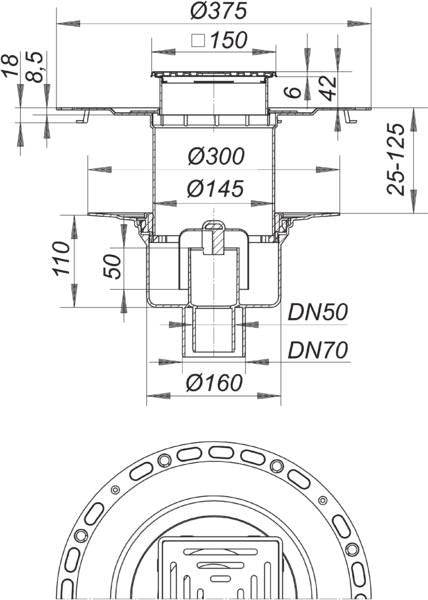

DALLMER Thin-Bed Floor Drain 61 HT/VC

according to DIN EN 1253. Drain body 61 made of polypropylene, with flange, removable bell trap, building protection cover and support ring. Drain socket DN 50/DN 70 vertical, drainage capacity: DN 50 1.78 l/s, DN 70 1.97 l/s.

Extension unit TistoDrain S 15 for drainage points in thin-bed floor constructions for secure connection to composite and sheet waterproofing according to DIN 18534. With fleece-laminated flange, frame extension made of ABS, Tisto-Mat for reinforcing the sealing layer, laterally adjustable (+/-5.5 mm) frame receiver, spacer ring for impact sound decoupling and backflow seal S 15.

VC 15 attachment with ABS extension, continuously height-adjustable up to 40 mm

, frame and grate made of stainless steel 1.4301, 150 x 150 mm,

+/- 8 mm laterally adjustable,

Load class K 3 (300 kg).
