DALLMER Floor Drain TistoPlan vertical K 10, DN 50, 100x100mm 513489

DALLMER Floor Drain TistoPlan vertical K 10

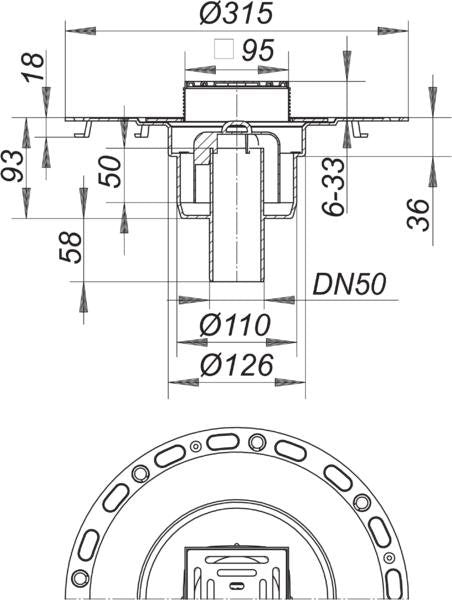

according to DIN EN 1253. Floor drain with 73 mm wide flange for secure connection to composite and sheet waterproofing according to DIN 18534. Flange for high adhesive bond to waterproofing materials, fleece-laminated on the top, with screed anchors on the bottom for secure, permanent fixation in the screed, additional reinforcement of the waterproofing layer by incorporating the included alkali-resistant, non-capillary, crack-bridging connection cuff into the composite waterproofing. Connection cuff compatible with all waterproofing materials according to DIN 18534. Drain body made of polypropylene, with integrated secondary drainage, removable bell trap with 50 mm water seal, building protection cover and 6 - 33 mm height-adjustable top 100 x 100 mm with ABS frame and 1.4301 stainless steel grate, load class K 3 (300 kg). Outlet nozzle: DN 50 vertical, flow rate: 1.34 l/s.
