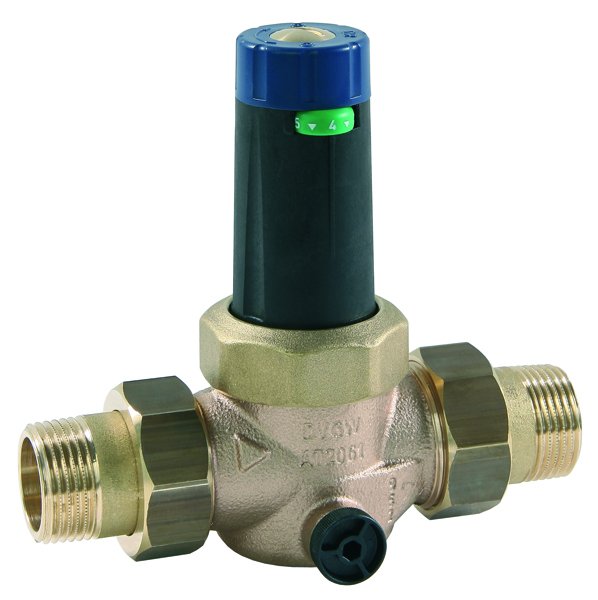

COMFORT Pressure Reducer No. 315 without pressure gauge DN40 (1 1/2) 1.5-6 bar made of red brass

The 315 pressure reducer is mainly used in drinking water supply systems according to DIN 1988. Given its specifications, it also protects industrial and commercial systems from excessive supply pressure. The 315 pressure reducer protects water supply systems and effectively prevents damage that can arise from increased pressure by compensating and optimizing fluctuating inlet pressures. Furthermore, it economically and environmentally reduces water consumption. The 315 pressure reducer is equipped with an outlet pressure display that shows the set pressure. This eliminates the need for an additional manometer. The spring cap can be rotated 360 degrees, so the pressure display is always visible. The 315 pressure reducer complies with DIN EN 1567 and meets DVGW requirements from DN 15 to DN 50. The 315 pressure reducer is equipped with a balanced single-seat valve and a coaxially arranged dirt trap (mesh size: 0.25 mm). The functional parts of the system are arranged in a cartridge that can be completely replaced without removing the fitting and without special tools, while maintaining the outlet pressure. The installation position can be chosen freely due to the special cartridge design. DN 40, R 1½. Technical data: max. inlet pressure: 25 bar outlet pressure: 1.5 - 6 bar (factory setting: 4 bar) Max. operating temperature: 30°C Installation position: any Flow rate: 9.1 m³/h at Δp 1.1 bar Medium: water, compressed air, neutral, non-adhesive liquids, neutral gases
