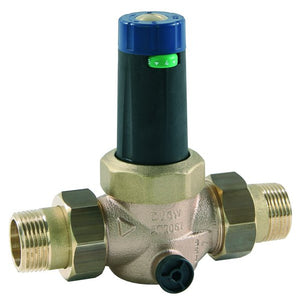

COMFORT Pressure Reducer No.315 AB without Manometer DN40 (11/2) 1.5-6 bar made of red brass

The 315 AB pressure reducer is primarily used in drinking water supply systems according to DIN 1988. Given its specifications, it also protects industrial and commercial systems from excessively high supply pressure. The 315 AB pressure reducer protects water supply systems and effectively prevents damage caused by pressure increases by compensating for and optimizing fluctuating upstream pressures. Furthermore, it reduces water consumption efficiently and in an environmentally friendly manner. The 315 AB pressure reducer is equipped with an outlet pressure indicator that displays the set pressure. This eliminates the need for an additional pressure gauge. The spring cap can be rotated 360 degrees, ensuring the pressure display is always visible. The 315 AB pressure reducer complies with DIN EN 1567 and meets DVGW requirements from DN 15 to DN 50. The 315 AB pressure reducer is equipped with a balanced single-seat valve and a coaxially arranged dirt trap (mesh size: 0.25 mm). The functional parts of the system are arranged in a cartridge that can be completely replaced without disassembling the fitting and without special tools, while maintaining the outlet pressure. The installation position can be chosen freely due to the special cartridge design. DN 40, R 1½. Installation dimensions without fittings are the same as D06F. Technical data: Max. inlet pressure: 25 bar Outlet pressure: 1.5 - 6 bar (factory setting: 4 bar) Max. operating temperature: 30°C Installation position: any Flow rate: 9.1 m³/h at Δp 1.1 bar Medium: water, compressed air, neutral, non-adhesive liquids, neutral gases
