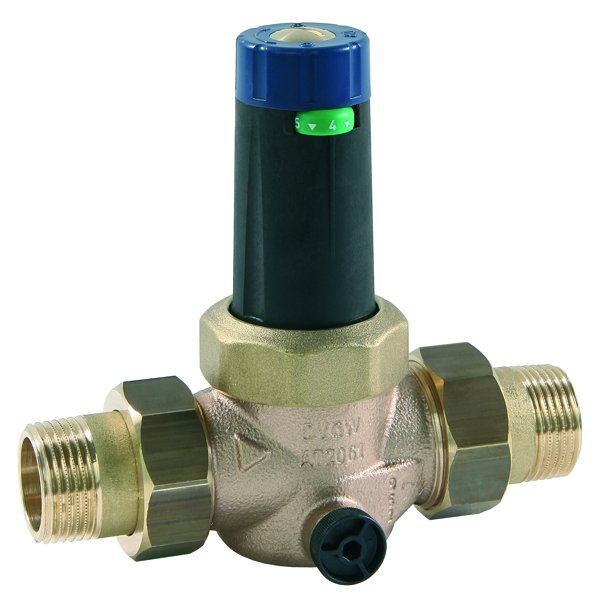

COMFORT Pressure Reducer No.315 AB without Manometer DN32 (11/4) 1.5-6 bar made of red brass

The pressure reducing valve 315 AB is primarily used in drinking water supply systems in accordance with DIN 1988. Given its specifications, it also protects industrial and commercial systems from excessive supply pressure. The 315 AB pressure reducing valve protects water supply systems and effectively prevents damage caused by pressure increases by balancing and optimizing fluctuating inlet pressures. Furthermore, it reduces water consumption efficiently and in an environmentally friendly manner. The 315 AB model meets the noise protection requirements of DIN 4109 (sound insulation in building construction) Class 1 without restrictions. The 315 AB pressure reducing valve is equipped with an outlet pressure indicator that displays the set pressure. This eliminates the need for an additional manometer. The spring cap can be rotated 360 degrees, ensuring the pressure display is always visible. The 315 AB pressure reducing valve complies with DIN EN 1567 and meets DVGW requirements from DN 15 to DN 50. It is sound-tested according to Class 1 up to DN 32. The 315 AB pressure reducing valve is equipped with a balanced single-seat valve and a coaxially arranged strainer (mesh size: 0.25 mm). The functional parts of the system are arranged in a cartridge that can be completely replaced without removing the fitting or using special tools, and without altering the outlet pressure. The special cartridge design allows for any installation position. DN 32, R 1¼. Installation dimensions without fittings are the same as D06F. Technical data: Max. inlet pressure: 25 bar Outlet pressure: 1.5 - 6 bar (factory setting: 4 bar) Max. operating temperature: 30°C Installation position: any Flow rate: 5.8 m³/h at Δp 1.1 bar Medium: water, compressed air, neutral, non-adhesive liquids, neutral gases ABP No.: P-IX 7729/I
